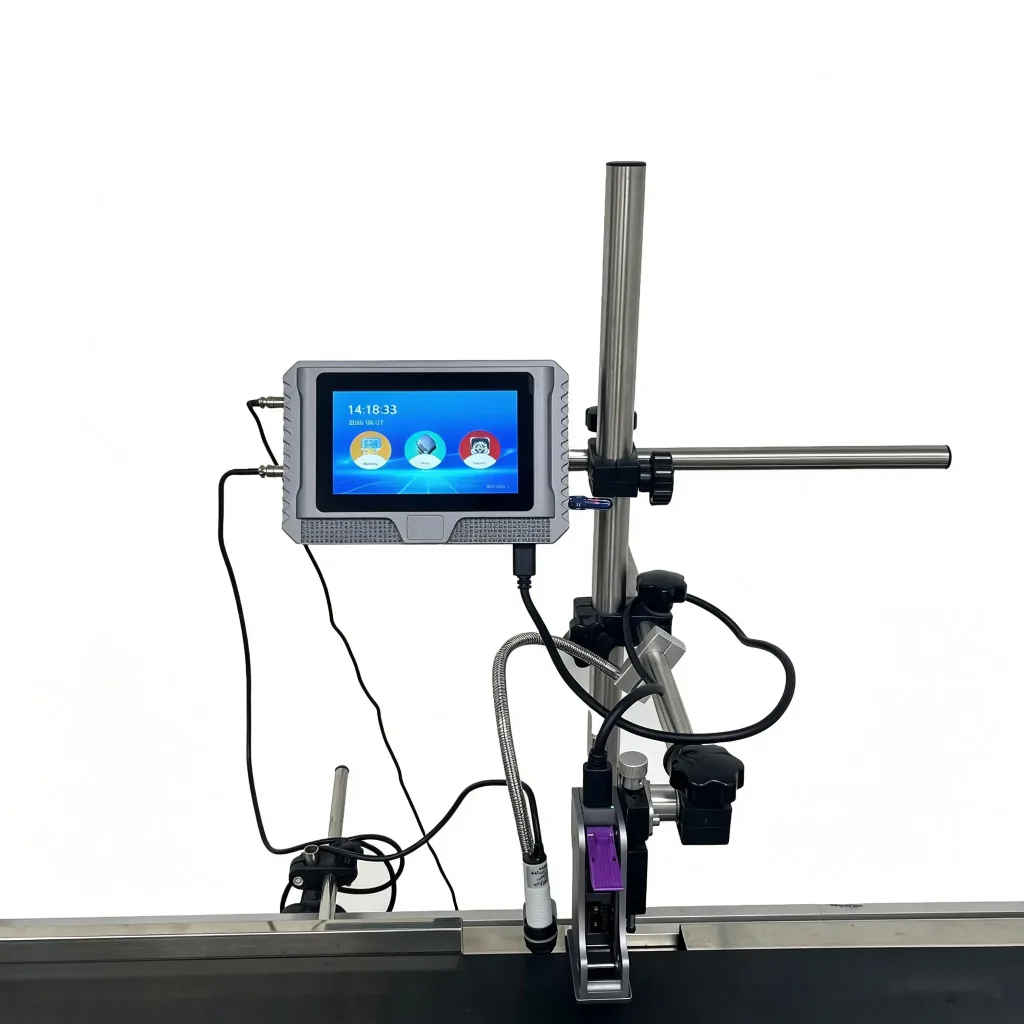

Product Description
Description：
Linux-powered multi-head marking delivers stable and efficient industrial coding. It supports wide-format, high-speed printing of multiple data types. A smart solution for reliable and productive identification.
- Multi-Head Efficiency: Supports up to eight printheads for synchronized and efficient high-speed coding.
- Seamless Wide Printing: Combines multiple printheads to achieve continuous and wider-format printing.
- Independent Head Control: Each printhead can be configured independently for different production requirements.
- Stable Linux System: Embedded Linux ensures reliable 24/7 operation with strong anti-interference performance.
- Permission Protection: User access control protects important settings and prevents unauthorized parameter changes.
- Precise Photoelectric Sensing: Accurate product detection enables automatic printing and improves production-line efficiency.
Specifications：
|
Model |
IPS-8001 |
IPS-8002 |
IPS-8003 |
IPS-8004 |
|
IPS-8004 |
IPS-8006 |
IPS-8007 |
IPS-8008 |
|
|
Operating System |
Linux system |
|||
|
Product Name |
High-Speed inkjet printer for assembly line |
|||
|
Print Distance |
2–5mm |
|||
|
Display Screen |
7-inch capacitive touch screen |
|||
|
Single Printhead Height |
Switchable between 12.7mm and 25.4mm |
|||
|
Print Data Types |
Date, characters, barcode, QR code, variable data, count, etc. |
|||
|
Printing Speed |
208 meters/min |
|||
|
Supported Barcode Types |
Code39, Code93, Code128, UPC-A, UPC-E, PDF417, QR Code, Data Matrix, EAN-8, EAN-13, EAN-14, NVE-18, MicroPDF417, ITF-14, HANXIN, GS1-128, GS1-QR Code, GS1-Data Matrix |
|||
|
Supported Languages |
Chinese, English, Japanese, Korean, German, French, and multiple other languages |
|||
|
Font Support |
Solid font, hollow font, dot matrix font |
|||
|
Power Supply |
110V–220V AC, 50/60Hz |
|||
|
Interface Configuration |
Nozzle, power supply, encoder, optoelectronics, Ethernet port, USB, RS232, alarm |
|||
|
Communication Protocols |
Supports RS232, RS485, and TCP communication protocols |
|||
|
Nozzle Features |
Single nozzles can be edited independently; nozzles can be combined and linked. Supports left spray, right spray, dual spray, and interactive spray between left and right nozzles. |
|||
|
Machine Dimensions |
240mm × 155mm × 40mm |
|||
|
Machine Weight |
0.95kg |
|||
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machines. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before placing an order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least a one-year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Overseas After-sales Engineers
Our overseas after-sales team consists of veteran senior engineers with More than 20 years of hands-on experience.
Typical Applications
Application and Selection Guidance for 8-HEAD
For thermal inkjet coding projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
