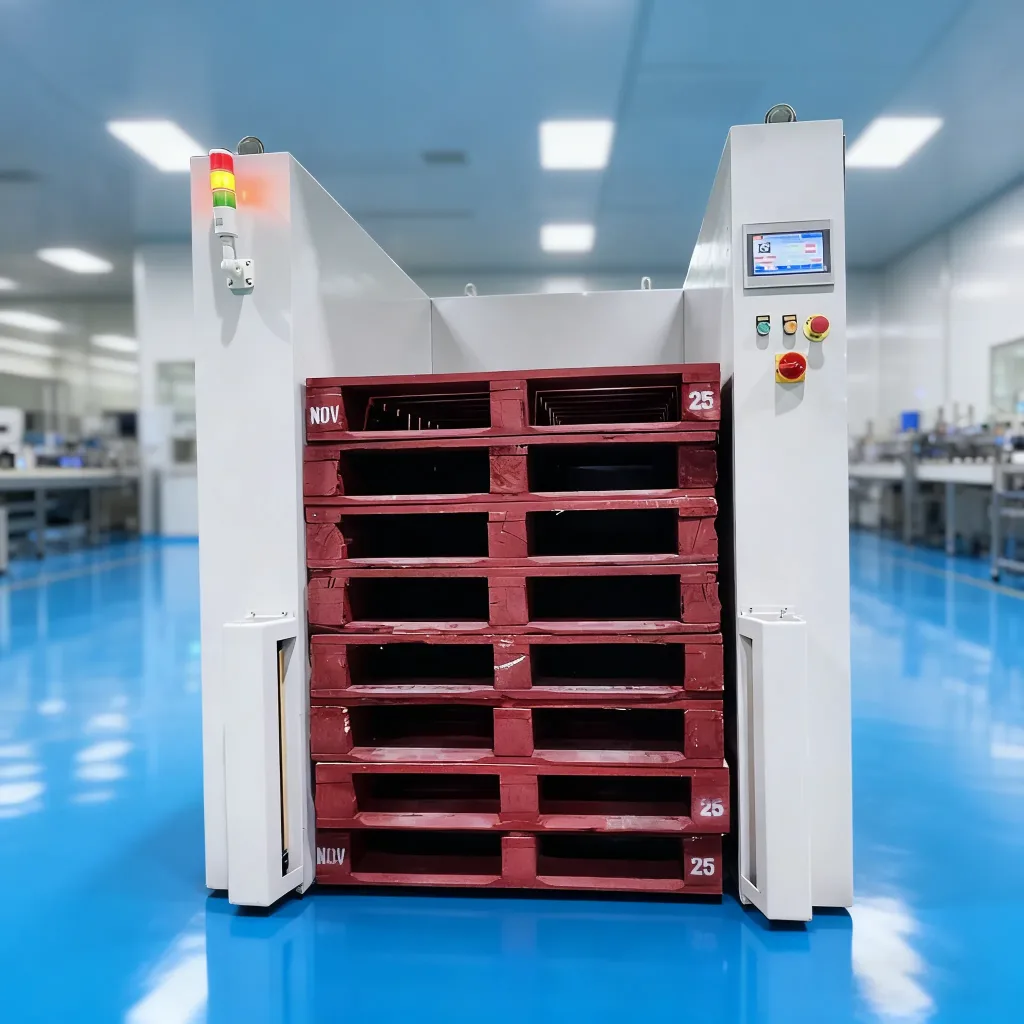

Product Description
Pallet Dispenser is a Special equipment for pallet storage. It is a necessary auxiliary equipment for the pallet automated production line . The machine occupies a small area and has low operating costs. It can not only save warehouse space and labor, and improve work quality, but also reduce the labor intensity of operators and improve production efficiency.
Features
Applicable pallet size：1200mm×1000mm×140mm ，Single pallet weight≤20kg.
One pallet can be stored/retrieved at a time, and pallets can be stored/retrieved by manual trolleys.
Manually deposit individual pallets one by one, and take out the entire stack manually after 10 pallets are stacked; or manually deposit 10 stacks of pallets and then take them out individually.
Specification
|
Model |
IPS-PD01 |
|
Weight of single pallet |
<20kg |
|
Lifting and pinning speed |
20-40mm/s |
|
Operating noise |
≤60DB |
|
Environmental conditions |
Humidity ≤ 98%, temperature -10-40℃ |
|
Equipment color |
Standard RAL7035 grayish white |
|
Lubricating material |
Universal grease |
|
Transmission method |
Servo electric lift, pneumatic pins |
|
Equipment weight |
About 800kg |
|
Total power |
About 1.5kw |
|
Approximate size of equipment |
Length 2200mm*width 1600mm*height 1600mm |
|
Operation method |
Operation panel, touch screen and common buttons |
|
Factory packaging |
Ordinary packaging |
|
Air source |
4~6kgf/cm2 |
|
Power supply voltage |
Three-phase five-wire 380V 50HZ |
Main electrical components
|
Name |
Brands |
|
PLC |
Mitsubishi / Siemens |
|
Touch screen |
Kunlun Tongtai |
|
Pneumatic components |
Airtac / Loya |
|
Servo motor |
Yankong |
|
Contactor |
Schneider / Delixi |
|
Circuit breaker |
Schneider / Delixi |
|
Emergency stop switch |
Schneider |
|
Start button |
Schneider |
|
Indicator light |
Schneider |
|
Photoelectric switch |
Autonics |
|
Terminal block |
TEND Taiwan |
