Product Description
Stable & Less Maintenance & Superior Performance
Specifications：
| User interface | 7“ LCD color screen 800*480 |
| Dots | 32 Dots Matrix |
| Nozzle size | 60um (Standard), 50um, 70um Optional |
| Print height | 0.8-20 mm |
| Print distance | 5-20 mm |
| Print line | 1-5 Lines |
| Print Direction | 360 degree rotating |
| Print speed | 1 Line 5*7: 150m/min 2 Lines 5*7: 55m/min 3 Lines 5*7: 38m/min 4 Lines 5*7: 35m/min |
| Print content | Text, counting, barcode, QR code, custom graphics, database, Class |
| Languages | English, Thai, Spanish |
| Printhead umbilical | 2.5m standard (other optional) |
| Custom logo/graphics | USB import or software drawing |
| Fluids containers | 1.8 L Tank |
| Input/output | Sensors, Encoders, Alarm lights, Input signal, Output signal, RS232 Optional |
| Accessory | Fiber optic sensor, Printhead bracket, Cleaning kit |
| Approximate weight | 28KG |
| Electrical Requirements | Rated power supply 100-240V, 50/60HZ, 120W |
| Temperature Range | 0℃ to 50℃ (32℉ to 122℉) |
| Advantages | High printing quality, Non-encrypted, Pigment model available, Various models ( DM head, high speed, pigment model, touch screem model, HR model, encrypted model optional) |
Advanced Capabilities：
Advantages and Service Commitments
1. 20 Years Experience
Over 20 years of experience In coding and marking Industrial.
We have provided professional solution for customers in different applications all over the world.
2. Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors.
3. Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before order.
4. Strict quality Control
Each machine is strictly inspected before delivery. We provide at least one year warranty for all of our machines.
5. Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
6. Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications

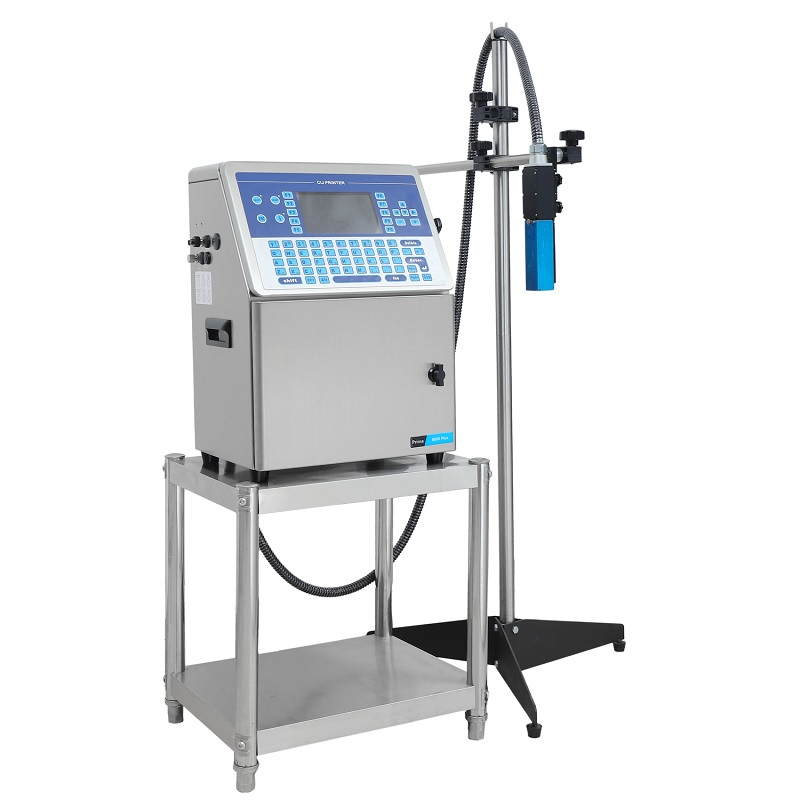

Application and Selection Guidance for INKVEO-B600
For continuous inkjet coding projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
