Product Description
Descriptions

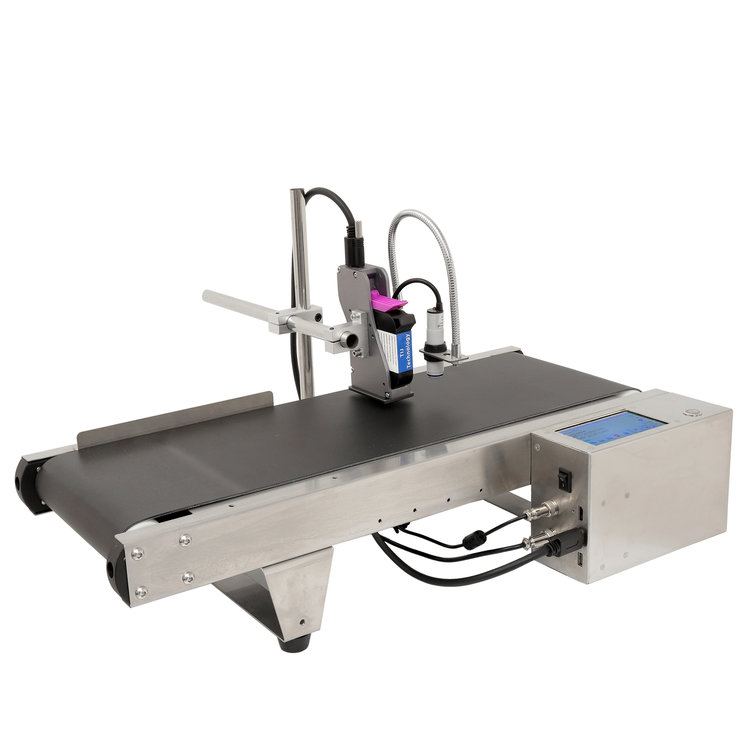

The IPS-8TC Conveyor Inkjet Printer integrates printing and transportation into a single machine. It delivers high-performance print quality and an unparalleled combination of convenient coding and conveying, while optimizing floor space.Widely used on various materials application for Wooden, Plastic, Glass, Cardbox and so on.
Specifications
|
MODEL |
IPS-8TC127 |
IPS-8TC254 |
|
Print system |
HP TIJ2.5 (Thermal inkjet) |
|
|
Maximum Print Resolution |
150*300 DPI / 200*300 DPI / 300*300 DPI |
|
|
Coding distance |
2-5mm |
|
|
Print Display Panel |
4.3 inches screen |
|
|
Single Printhead Height |
12.7mm (0.5 inch) |
25.4mm(1 inch) |
|
Maximum load bearing of conveyor |
5kgs |
|
|
Number of Printheads |
1-2 |
|
|
Power |
60w |
|
|
Print Content |
Text,date,logo,QR code, series number etc. |
|
|
Support bar code type |
Bar code: BAR128 / BAR39 / BAR93 / EAN13 / UPC QR code: QRCOD / DataMartix |
|
|
Print Material |
pipes, cardboard Boxes, aluminum foil, and plastics. |
|
|
Conveyor size |
600*200mm / 1000*200mm / 1500*200mm (Length*width) |
|
|
Languages and input methods |
English, Chinese, Spanish, Japanese, Korean etc. |
|
|
Date Interfaces |
USB interface, alarm, photocell |
|
|
Temperature Range |
(5°C to 35°C ) 、Humidity 10% to 90% |
|
|
Electronical Requirements |
100-240 VAC 50/60Hz |
|
|
Ink Solutions |
42ml of water based and solvent based ink cartridge available, multiple color of ink cartridge available. |
|
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machines. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before placing an order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least a one-year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Overseas After-sales Engineers
Our overseas after-sales team consists of veteran senior engineers with More than 20 years of hands-on experience.
Typical Applications
Application and Selection Guidance for IPS-8TC127/254
For thermal inkjet coding projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
