Product Description
Description：

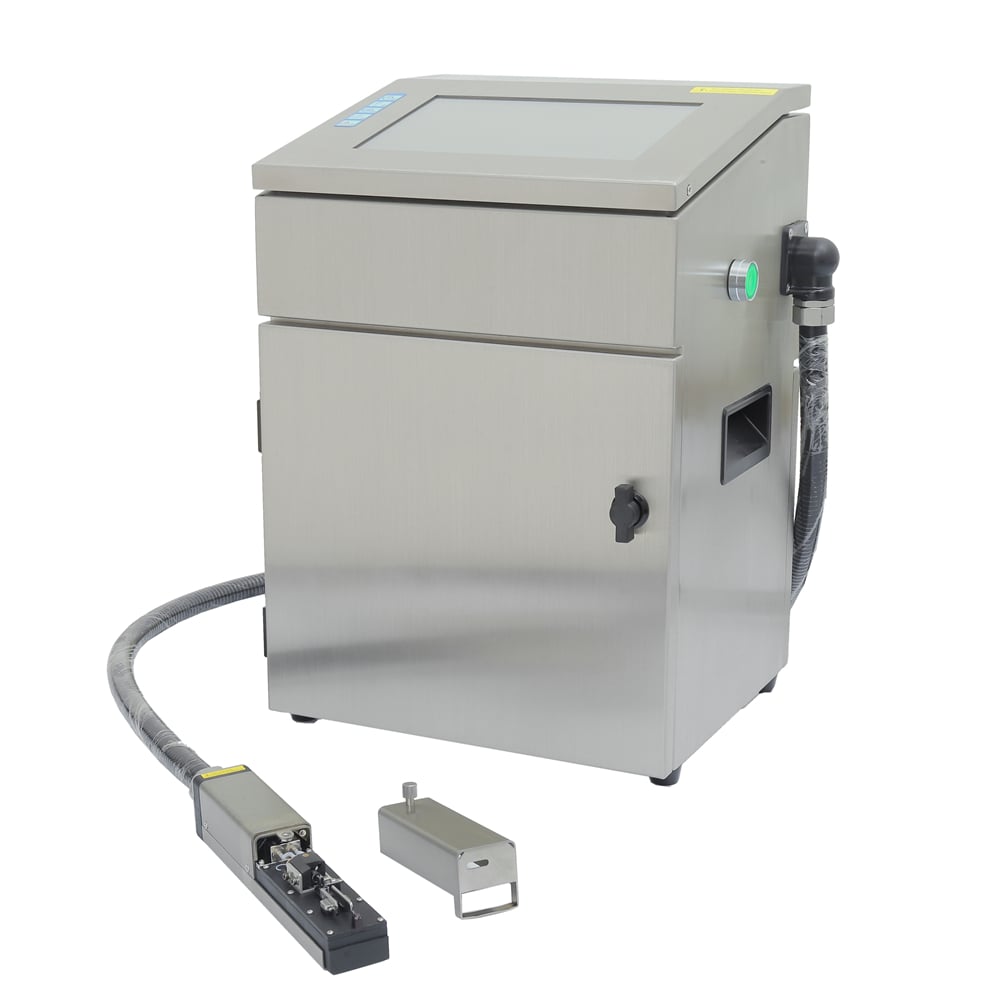

The IPS-C9650 is a reliable and cost-effective continuous inkjet printer designed for industrial coding and marking applications. Featuring an open ink system, it provides greater consumable flexibility and helps reduce long-term operating costs while maintaining stable, high-quality printing performance.
The printer is ideal for printing production dates, expiration dates, batch numbers, lot codes, serial numbers, logos, and other variable information on a wide range of materials, including plastic, glass, metal, paper, cartons, cables, and packaging films. Its advanced printing technology ensures clear and consistent codes even in demanding production environments.
Equipped with a 10.1-inch HD touchscreen and an intuitive user interface, the IPS-C9650 simplifies operation, message creation, and production management. With support for multiple languages, high-speed printing performance, and easy integration into existing production lines, it is an ideal solution for manufacturers seeking reliable product identification and traceability.
Whether used in the food, beverage, pharmaceutical, cosmetic, electronics, cable, or packaging industries, the IPS-C9650 delivers dependable performance, maximum uptime, and lower total cost of ownership.
Performance：
- Supports dynamic printing of many commonly used 1D and 2D barcodes.
- MODBUS industry standard protocol for communicating with other industrial devices.
- Simple and convenient remote upgrade function to meet the user’s future expansion ofvarious new functions.
- 4-core processor, CPU frequency reaches 1.4GHz, standard 1G memory, 8G storage.
- The advanced measurement control system and printhead heating function could adjust printing parameters automatically to ensure high-quality printing regardless of the tem-perature changes throughout the day and across quarte.
- Interactive touch screen: 10.1″ LVDS high-definition screen, the resolution reaches 1280X800. The intuitive and simple interface simplifies daily interaction, clear display ofliquid level and print data in real time.
Specifications:
|
Printer Model |
IPS-C9650 |
|
Nozzle size |
60μm standard |
|
Print line |
Up to 5 lines print (5 × 5 dot matrix) |
|
Print Speed |
up to 285m/min (5 × 5 dot matrix, single line) |
|
Character height |
from 1.8mm to 15mm |
|
Throw distance |
from 2mm to 30mm |
|
Interface |
10.1 ” LVDS high-definition screen |
|
Language |
English, Arabic, Turkish, Vietnamese, Spanish, Portuguese, Bengali, Korean, etc. |
|
Print information |
time and date, counter, batch code, serial number, barcode, QR code, custom logo/graphics… |
|
Umbilical length
|
3m standard, other size optional
|
|
Umbilical diameter
|
21mm |
|
Printhead size
|
44mm*41mm*232mm
|
|
Communication interface |
Photocell, Encoder, Alarm beacon (24V), Ethernet LAN, RS232, USB Port, Reserved port |
|
Ink / makeup |
Multiple inks available for different applications,
750ml cartridge for both ink and makeup |
|
Operation temperature range |
from 5°C – 45°C |
|
Humidity |
from 30%-95% RH non-condensing |
|
Electrical requirements |
90-240VAC at 50/60 Hz, 60W |
|
Controller demensions |
370mm*307mm*490mm |
|
Console weight |
20KG |
|
Accessories |
Printhead stand, photocell, cleaning kit |
Advantages and Service Commitments
1. 20 Years Experience
Over 20 years of experience In coding and marking Industrial.
We have provided professional solution for customers in different applications all over the world.
2. Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors.
3. Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before order.
4. Strict quality Control
Each machine is strictly inspected before delivery. We provide at least one year warranty for all of our machines.
5. Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
6. Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications
Application and Selection Guidance for IPS-C9650
For continuous inkjet coding projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
