Product Description
Description：

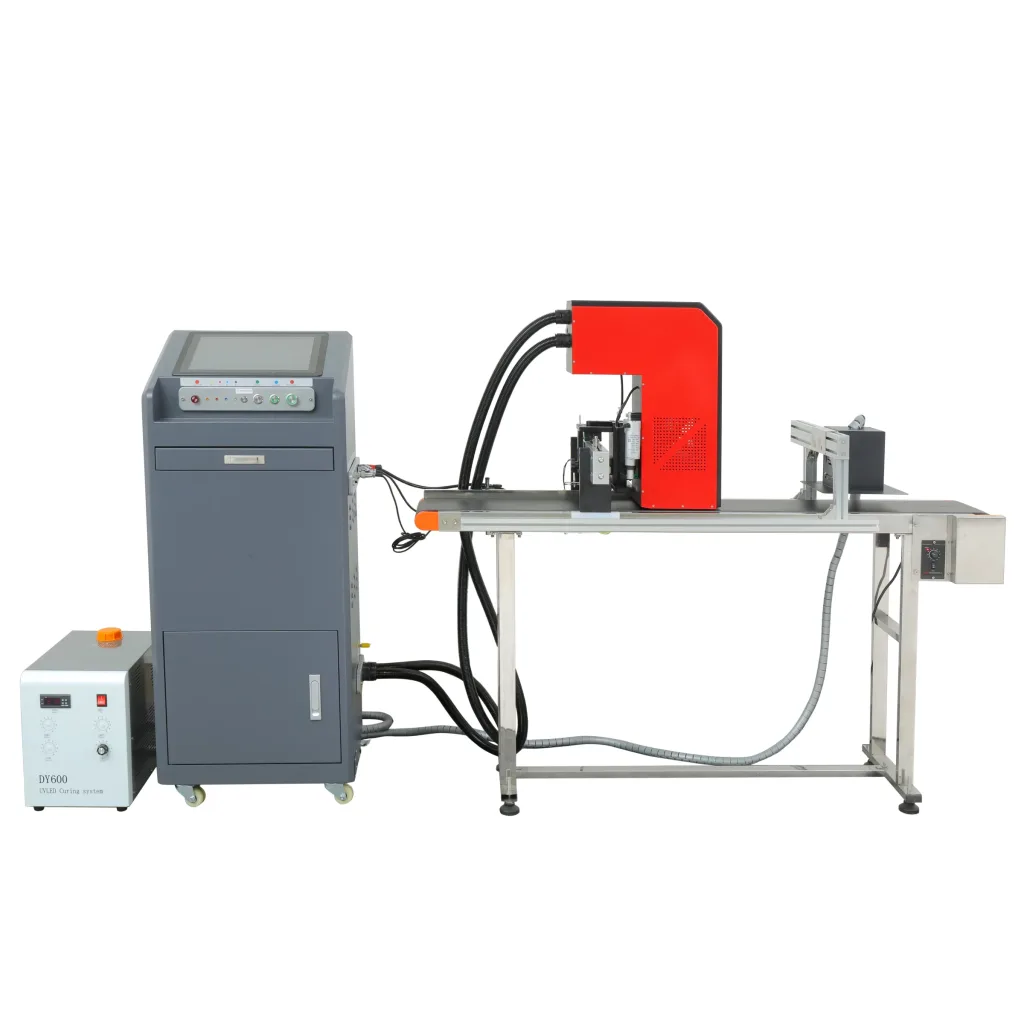

IPS-CUV33 UV Inkjet Printer use EPSON I3200 piezoelectric printhead which is high resolutionand high durability. EPSON I3200 head have 3200 pcs and 8 rows of active nozzles, so it is easy to achieve full color printing by single even head. The printhead has excellent durability due to it’s high-precision processing technology. It has been optimized for industrial printing field to achieve High-Speed output and high quality printing. Equipped with advanced negative pressure system, the IPS-CUV33 has a stableand continuous ink flow system which assure the maintenance to be very easy.IPS-CUV33 is a best solution for color logo printing. It is also a fast and more easy solution to replace screen printing. It is widely used for face mask,Nail make-up, food packaging, customized products and many other products.
Specifications：
|
Model |
IPS-CUV33 |
IPS-CUV33RO |
IPS-CUV55-2 |
|
Printhead |
EPSON I3200 |
RICOH G4 |
RICOH G5 |
|
Printhead Type |
Piezoelectric Printhead |
Piezoelectric Printhead |
Piezoelectric Printhead |
|
Printhead Manufacturer |
EPSON I3200 Printhead |
Japan RICOH G4 Printhead |
Japan RICOH GEN5 Printhead |
|
Print Height |
33mm |
32.4mm |
54mm |
|
Printhead Resolution |
Print vertically: |
Print vertically: |
Print vertically: |
|
300DPI |
300DPI |
600DPI |
|
|
Printing Resolution |
Side print: 200-1200DPI Adjustable |
||
|
Printhead Module |
Up to 4 print head modules can be expanded |
Up to 8 print head modules can be expanded |
Up to 8 print head modules can be expanded |
|
Droplet Size |
35pl |
7pl, 14pl, 21pl |
7pl, 14pl, 21pl Adjustable |
|
Printing Speed |
0-60meter/minute* |
0-88 meter/minute* |
0-88 meter/minute* |
|
Printing Lines |
Unlimited lines |
||
|
Printing Content |
Text/Time/Date/Patterns/Shift/Serial number/Dynamic barcode/QR code/Dynamic serial port data/Dynamic database/Dynamic images |
||
|
Cardboard/Plastic/Metal/Sheet material/Pipe/Stone/Glass/Electronic components/Auto parts/Industrial chemical packaging/Pharmaceutical and food gift packaging boxes |
|||
|
Printhead To Product Distance |
1-5mm 2mm optimum |
||
|
External Interface |
Ethernet interface, USB interface |
||
|
Way Of Working |
Print down / side print |
Print down |
Print down |
|
Printing Method |
Paged or continuous |
||
|
Ink Color |
Black, yellow, red, blue, varnish, infrared invisible ink, ultraviolet invisible ink |
Black, yellow, red, blue, varnish, infrared invisible ink, ultraviolet invisible ink |
|
|
Curing Type |
Water-cooled LED-UV curing |
||
|
Ink System |
Automatic black supply and intelligent negative pressure system |
||
|
Power Requirements |
AC 220V |
||
|
Ambient Temperature |
10-40°C |
||
|
Environment Humidity |
5-90%Rh, no condensation |
||
|
Printing Material |
PVC, OPP, BOPP, PET, coated paper, metal, printing surface, color box, paper, carton, wood, etc. |
||
|
Matching Equipment |
Rewinding equipment, paging platform, assembly line, printing machine, packaging equipment, etc. |
||
Advantages and Service Commitments
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications
Application and Selection Guidance for IPS-CUV
For piezo inkjet printing projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
