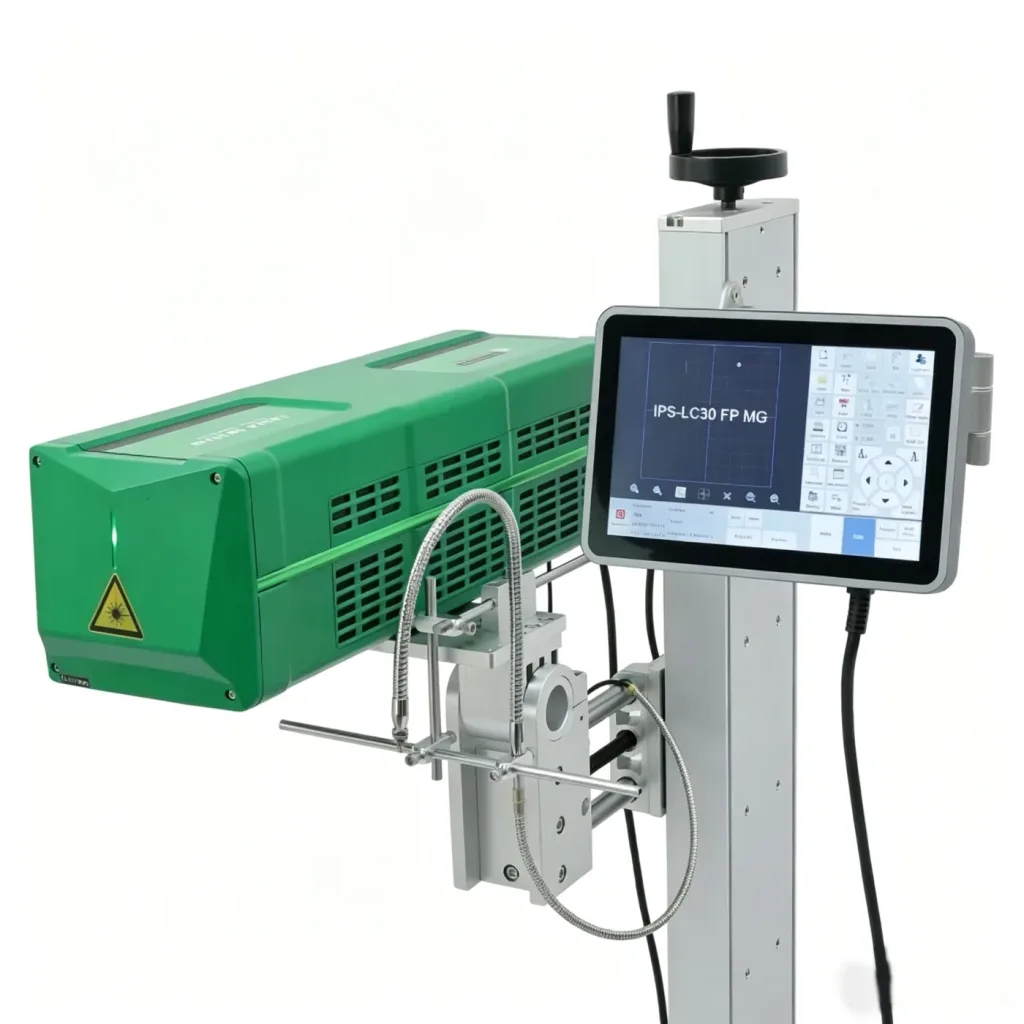

Product Description
Description：
-
720-degree portable laser head for different automation requirements
Easily handle more production line situations
-
High-precision beam control
It can not only be applied to all kinds of high-density materials, but also create high-precision patterns to maintain the esthetic and integrity of products.
- Easy to operate
Independent research and development of intelligent touch screen control system, with high intelligent core chip, stable operation without failure
-
High-speed Marking speeds
Up to 12000mm/s, which enables more complex content and pattern marking in the same amount of time.
-
Easy to integrate
High-transmitted coating field len provides a large field of view to expand the marking area, and the compact marking head upgrades the convenience to a higher level.
-
Safe
High-configuration products can be selected, and the traceability system can be connected to track the whereabouts of products easily and improve product safety.
Specifications：
| Model | IPS-LC30F MG | IPS-LC60F MG | ||
| Casing material | Anodized Aluminum | |||
| Laser type | CO2 laser source | |||
| Power | 30W | 60W | ||
| Laser wavelength | 10.6μm | 10.2μm | 9.3μm | |
| Marking method | High precision 2D scanning method | |||
| Marking speed | ≤12000mm/s | |||
| Main control | 10.1 inch external controller | |||
| Operation system | Linux P9 | |||
| Cooling system | Air-cooled（water-cooled optional） | |||
| Type of marking | Both dot and matrix & vector | |||
| Reflector size | Standard：8.5mm | |||
| Marking field | Standard：90mm×90mm，Maximum optional：450mm x450mm | |||
| Positioning method | Red-light positioning and Infrared focus | |||
| Number of lines | No limits within marking field | |||
| Production line speed | 0~189m/min (varies according to materials and printing contents） |
|||
| Language | English, Chinese, Korean, Russian, German, Arabic, etc. | |||
| File format | PLT | |||
| Barcode / QR code | CODE39, CODE128, CODE126, QR, Z-Code, DM, Visual code, etc. | |||
| Power supply | 220V | |||
| Max power consumption | ≤800W | |||
| Net weight | 15kg | |||
| Laser head size | 587mmX186mmX174mm | |||
| Interface | USB2.0/Interfaces for sensor and encoder | |||
| Working condition | 0-40℃ | |||
Our Core Advantages:
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications
Application and Selection Guidance for IPS-LC
For industrial laser marking projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
