Product Description

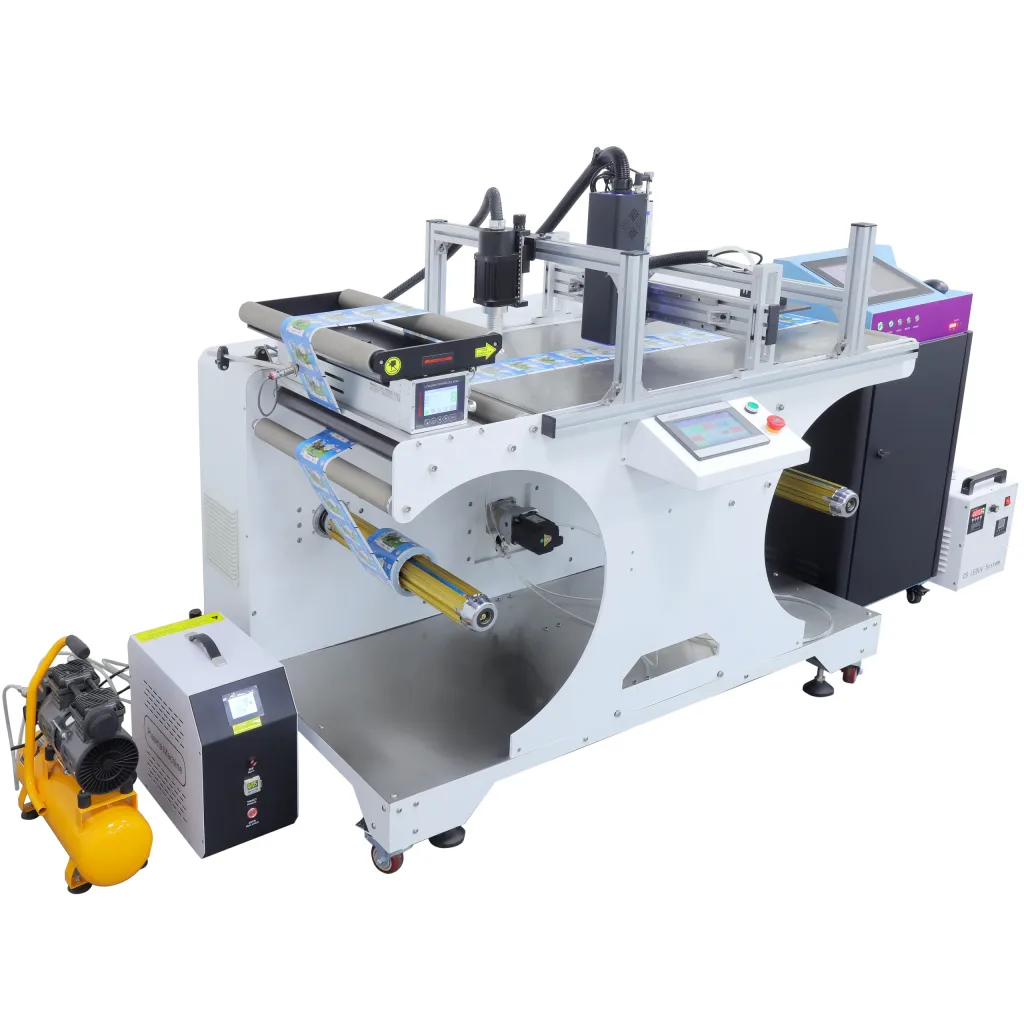

The IPS-RW600 is a robust, high-efficiency rewinding solution engineered to deliver exceptional precision and versatility for your post-processing workflows. Designed for industrial-grade performance, this system integrates advanced automation to ensure flawless roll alignment and consistent tension, at the core of the system is a robust rewinding unit governed by a high-performance PLC and an intuitive 7-inch color HMI. This advanced control architecture delivers precise tension management and synchronized speed control. A critical anti-loosening feature engages during stops to maintain web integrity and prevent material waste. The system supports a label width of 600mm and achieves a maximum mechanical speed of 180 meters per minute.
Core Technical
Precision Control
Driven by a high-performance PLC and a 7-inch color touchscreen HMI, the system supports constant tension control, stable speed ramping, and anti-loosening stops
Superior Alignment
Features a high-precision frame-type web guiding system with photoelectric sensor detection, maintaining a deviation accuracy of ±1 mm.
High-Speed Productivity
Delivers industry-leading efficiency with adjustable running speeds up to 180 meters/minute.
Versatile Material Handling
Expertly processes a wide variety of web-based materials, including BOPP, CPP, PET, PE, paper, composite films, and aluminized films.
Industrial Build
Constructed with a heavy-duty carbon steel body and a premium baked paint finish to withstand rigorous industrial use.
Equipment Parameters:
| Collection Method | Automatic rewinding |
| Running Speed | 0 – 180 m/min (Adjustable) |
| Applicable Materials | BOPP, CPP, PET, PE, paper, composite film, aluminized film, and other roll materials |
| Material Width Range | 100 – 600 mm |
| Max. Material Diameter | 500 mm |
| Web Guiding Accuracy | ±1 mm |
| Control System | High-performance PLC with 7-inch Color Touchscreen |
| Tension Control | Constant tension for both unwinding and rewinding |
| Transmission Mode | 750W Servo Motor with Planetary Gearbox |
| Power Requirements | 220V / 50HZ |
| Power Consumption | Approx. 1.5 KW |
| Dimensions (L*W*H) | 1500*1200*1150mm |
| Equipment Weight | Approx. 500 kg |
| Integrated Equipment | CIJ/TIJ/PIJ Inkjet printer, Laser marking machine, UV printing machine, Labeling machine |
| Customization | Machine can be customized based on specific requirements for speed, material type, and dimensions. |
Advantages and Service Commitments:
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Application and Selection Guidance for IPS-RW600
For industrial automation and line integration projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
