Product Description

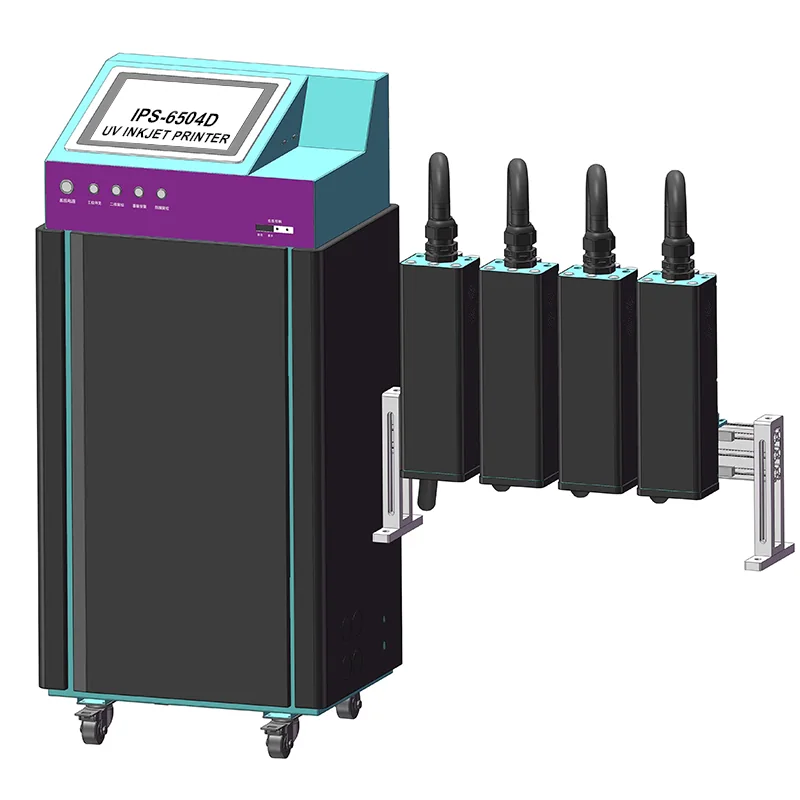

IPS-UV Inkjet Printer is developed based on piezoelectric printhead. With our independently innovated automatic ink supply system and high-precision intelligent negative pressure system, it provides customers with High-Speed, high resolution and stable performance. It supports both side and down printing. UV inkjet printer is widely used in is widely used in food, beverage, pharmaceutical, daily chemical, electronics, card making, automobile, packaging, printing, tobacco, construction materials and other industries.
- Large and multiple sizeprinting, one controllerwith max 6 printheads.
- Intelligent negativepressure system, avoidink backflow.
- Powerful software,support barcode, QR code,UDI code and databaseprinting.
- Unified and orderly wiringdesign, easy for maintenance.
- Physical collision avoidance system, protect theprinthead perfectly.
- Multiple ink color, CMYK and white. Support waterbased and oil based ink.
Specifications：
|
MODEL |
IPS-6701 |
IPS-6711 |
IPS-6101 |
IPS-6401 |
IPS-6501 |
|
Printhead |
SEIKO 510 |
Konica 1024 |
SEIKO 1536 |
RICOH G4 |
RICOH G5 |
|
Print Height (single head) |
72MM |
72MM |
108MM |
32.4MM |
54.1MM |
|
Resolution |
180DPI |
360DPI |
360DPI |
300DPI |
600DPI |
|
Droplet Size |
35PL/50PL |
12PL/35PL |
13PL/50PL |
7PL |
7PL |
|
Ignition Frequency |
8.29Khz |
12Khz |
37Kh2 |
30Khz |
30Khz |
|
Nozzle Quantity |
510 |
1020 |
1536 |
384 |
1280 |
|
Nozzle Row |
1 |
2 |
4 |
2 |
4 |
|
Nozzle Heating |
External |
External |
External |
Internal |
Internal |
|
Print Speed |
35M/M (360DPI) |
50.8M/M (360DPI) |
45M/M (360DPI) |
76.2M/M (300*600DPI) |
155M/M (600*400DPI) |
|
Print Direction |
Side and down |
Side and down |
Side and down |
Side and down |
Side and down |
|
Print Content |
TEXT, Graphics, Time, Date, S/N, Over 40 typle of barcode( CODE-128A/B/S,UPC-A/E,CODE39, etc.),QR CODE, PDF417, DATAMATIX,ZETEC. |
||||
|
Database |
Support multiple datebase format (Access,Excel,TXT,SQL Server,Oracel, etc.), suport multiple groups of datebase printing at the |
||||
|
Print Distance |
0.5-1.2MM ( Depends on ink model, material and speed) |
||||
|
Print Material |
Paper, carton, lable, metal ,plastic, wood, OPP,PVC,PET,PE, etc. |
||||
|
Feeding System |
Intelligent negative pressure system |
||||
|
Ink Type |
Water ink, Oil ink, UV ink. |
||||
|
Ink Color |
CMYK (CYAN, MAGENTA, YELLOW , BLACK)White, Special color by Pantone color |
||||
|
Environment Temperature |
0-50 degree Celsius |
||||
|
Environment Humidity |
5-90% |
||||
Advantages and Service Commitments
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer

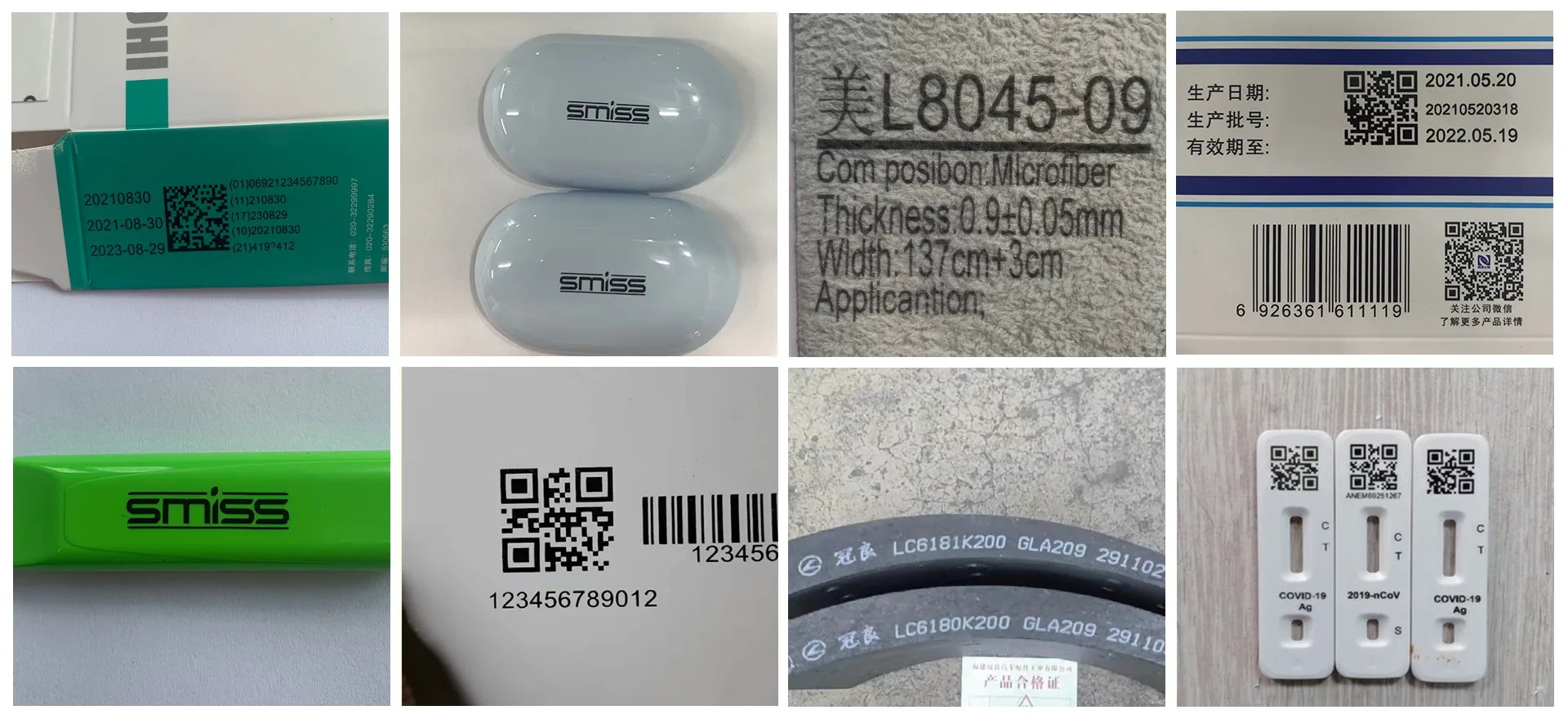

Typical Applications
Application and Selection Guidance for IPS-UV
For piezo inkjet printing projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
