Product Description
Product Description

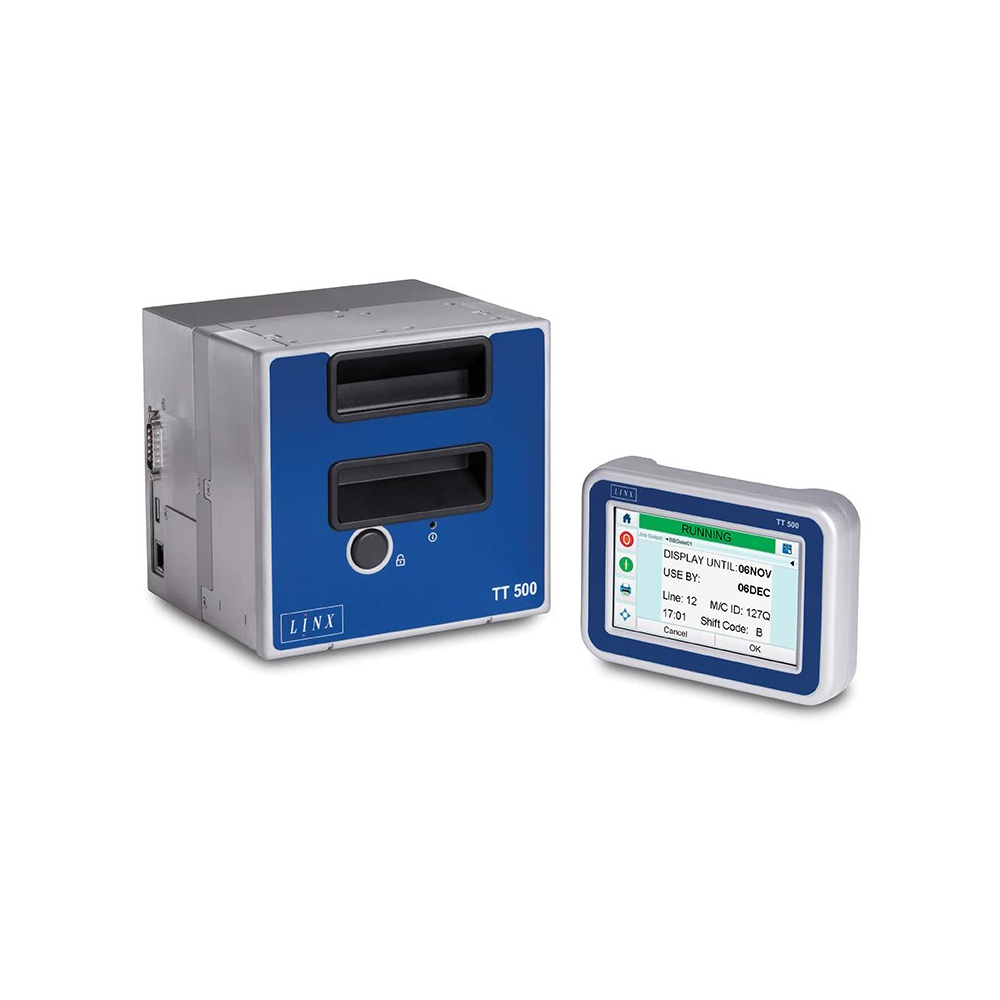

The Linx TT 500 is a simple printer designed for printing onto flexible materials including bags, pouches, labels andflow wrap, ideal when coding areas up to 32mm x 100mm.
Low cost of ownership, increased uptime, easy to use.
Key benefits
- Operates without compressed air reducing installation and operating costs while maintaining consistent print quality
- Large range of ribbons to better meet your application and production line printing needs
- Optimised ribbon usage with bi-directional stepper motors delivering more prints per ribbon
- Lightweight, simple, push button ribbon cassette system for quick and easy ribbon changes
- Optimal number of user maintainable parts that are easy to replace
- Easy to set and maintain print quality with electronic pressure control
- Simple cassette system minimises errors during ribbon replacements
- Easy to use colour touch screen – fewer errors and hassle-free operation
Specifications：
|
Model
|
VJ6230 / TT550
|
VJ6330 / TT750
|
VJ6330 / TT750
|
VJ6530 / TT1000
|
VJ6530
|
|
Printhead size
|
32mm
|
32mm
|
53mm
|
53mm
|
107mm
|
|
Description
|
Our cost-effective TTO printer that provides high-quality codes on flexible film.
|
Our mid-range TTO printer with an airless printhead and iAssure, a built-in tool to check code quality.
|
Our high performance TTO printer with an airless printhead and iAssure, a built-in tool to check code quality.
|
Our high performance TTO printer with an airless printhead, fast print speeds, and most sophisticated features for complex coding
demands. |
|
|
Shared specs
|
– Intermittent and continuous motion
|
||||
|
– Consistent 0.5mm (0.02in) print gap
|
|||||
|
– Web browser capable
|
|||||
|
Ribbon widths
|
20mm – 33mm
|
20mm – 55mm
|
55mm – 110mm
|
||
|
(0.8in – 1.3in)
|
(0.8in – 2.2in)
|
(2.2in – 4.33in)
|
|||
|
Ribbon grades
|
7 grades
|
||||
|
Ribbon lengths
|
Up to 1200M
|
||||
|
Bar code printing
|
EAN8, EAN13, UPCA, UPCE and QR codes
|
EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon
request |
|||
|
Operator interface
|
CLARiTY™ 5.0 inch color QVGA CSTN LCD and touch screen
|
TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password
protection, extensive language support |
|||
|
(800 x 480 pixels)
|
|||||
|
Leader/follower capability
|
Up to four of the same Videojet DataFlex® printers controlled via a single CLARiTY™ control unit
|
||||
Advantages and Service Commitments
1.20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
2.Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
3.Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
4.Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
5.Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
6. Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications
Application and Selection Guidance for LINX TT
For thermal-transfer overprinting projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
