Product Description
Product Description
High-speed thermal transfer printer (600mm/s) supporting 1D/2D barcodes and TrueType fonts. Features USB/Ethernet connectivity, CoLOS software integration, and robust Industry 4.0 readiness.
Ideal for real-time coding, serialization, and seamless production line control with minimal downtime.
Product Features
Operational Efficiency
- No need to install plant air. In addition to reducing costs, print quality will remain constant through the years.
- AQM system – Ribbons and printhead are automatically recognized and adjusted by the printer. No human intervention required, no mistakes.
- Dead-dot detection system to eliminate faulty codes – Constant quality codes thanks to unique printhead monitoring.
Cost-effective Reliability
- Simple, robust design—proven in packaging facilities worldwide—delivers consistent results you can rely on.
- Up to 15%* more codes per roll – Large choice of ribbons based on your packaging type and needs.(*Compared to standard ribbon usage)
- Gain direct access to one single point of contact for expert support on both your coder and ribbon.
Enhanced Customer Experience
- Extremely compact (20 cm x 17 cm x 18 cm), it can easily be integrated into your production line and integrated by OEMs.
- USB 2.0 connectivity – For easy connection of keyboards, barcode scanners and USB memory sticks.
- An optional 10.1” touchscreen RUI can be connected and positioned anywhere on the packaging machine.
- Configurable RUI home screen and password-protected user profiles manage access and limit human-related errors
Specification
| Model | Feature | X30 | X45 |
| Print feacture | Print speed |
Intermittent: 100 to 600 mm/s Continuous: 50 to 600 mm/s |
Intermittent: Up to 600 mm/s Continuous: 10 to 600 mm/s
|
| Print area |
Intermittent: 32 mm x 40 mm Continuous: 32 mm x 100 mm |
Intermittent: 32 mm or 53 mm x 75mm Continuous: 32 mm or 53 mm x 250mm |
|
| Gap between prints |
0.5 mm |
0.5mm |
|
| Print features |
– Automatic printhead setup |
– Automatic printhead setup |
|
| Additional print features |
Printing of real-time clock, dates and auto-updating best before dates, barcodes |
Printing of real-time clock, dates and auto-updating best before dates, barcodes |
|
| Fonts |
True Type font support, including non-Roman characters and symbols |
True Type font support, including non-Roman characters and symbols |
|
| Barcode support |
Han Xin, GS1 standard compliant, DataMatrix, QR and Composite RSS barcodes |
Wide choice of 1D and 2D barcodes: ITF, Code39, Code 128, EAN 128, EAN 8, EAN 13, UPCA, UPCE, RSS linear, PDF 417, GS1 standard compliant, DataMatrix, QR and Composite RSS barcodes support |
|
| Consumable Specifications | Thermal transfer ribbons |
Available in a variety of grades and colors |
Available in a variety of grades and colors |
| Maximum ribbon length |
Up to 700 m |
Up to 1100m |
|
| Ribbon width |
22 mm and 33 mm |
20-55mm |
|
| Ribbon save options |
Radial ribbon save mode and interlaced mode |
Radial ribbon save mode and interlaced mode, radial interlaced mode, radialwhitespace mode and step adance mode |
|
| Recommended ribbon ranges |
Best results with SmartDate® Xceed, SmartDate® Xtra and SmartDate® Xpert ribbon ranges |
Best results with SmartDate® Xceed, SmartDate® Xtra and SmartDate® Xpert ribbon ranges |
|
| Operating Characteristics | User interface |
Optional handheld terminal / remote UI (no built-in screen) |
10.1″ full color 1024×600 touchscreen |
| Hardware interface |
Inputs: “Print go” and 1 configurable input Outputs: Fault, warning, + 2 configurable outputs
|
Inputs: “Print go” and 1 configurable input Outputs: Fault and warning
|
|
| Software interface |
USB for uploading/downloading images, settings, data files; message storage location. |
Software interface: USB for downloadingmages, settings and data files. RS232, Ethemnetcommunications standard. Communicationsorotocols for PCs, PLC and packaging machines,ncluding full remote control web server |
|
| Other |
Parent/Child function to allow control up to 7 printers |
|
|
| Weight |
Intermittent printer: 5.5 kg |
Printer: 7.8 kg |
|
| Environment |
Temperature range: 0°C to 40°C |
Temperature range:0°Cto 40°C |
|
| Options and Accessories | User interface |
– Optional color remote user interface |
Detect-Plus: Code detection |
| Accessories |
Mounting bracket, encoders and barcode scanner |
Mounting bracket, encoders, and barcode scanner |
Our Core Advantages:
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer，More than 20 years of Veteran Senior Engineer.
Typical Applications

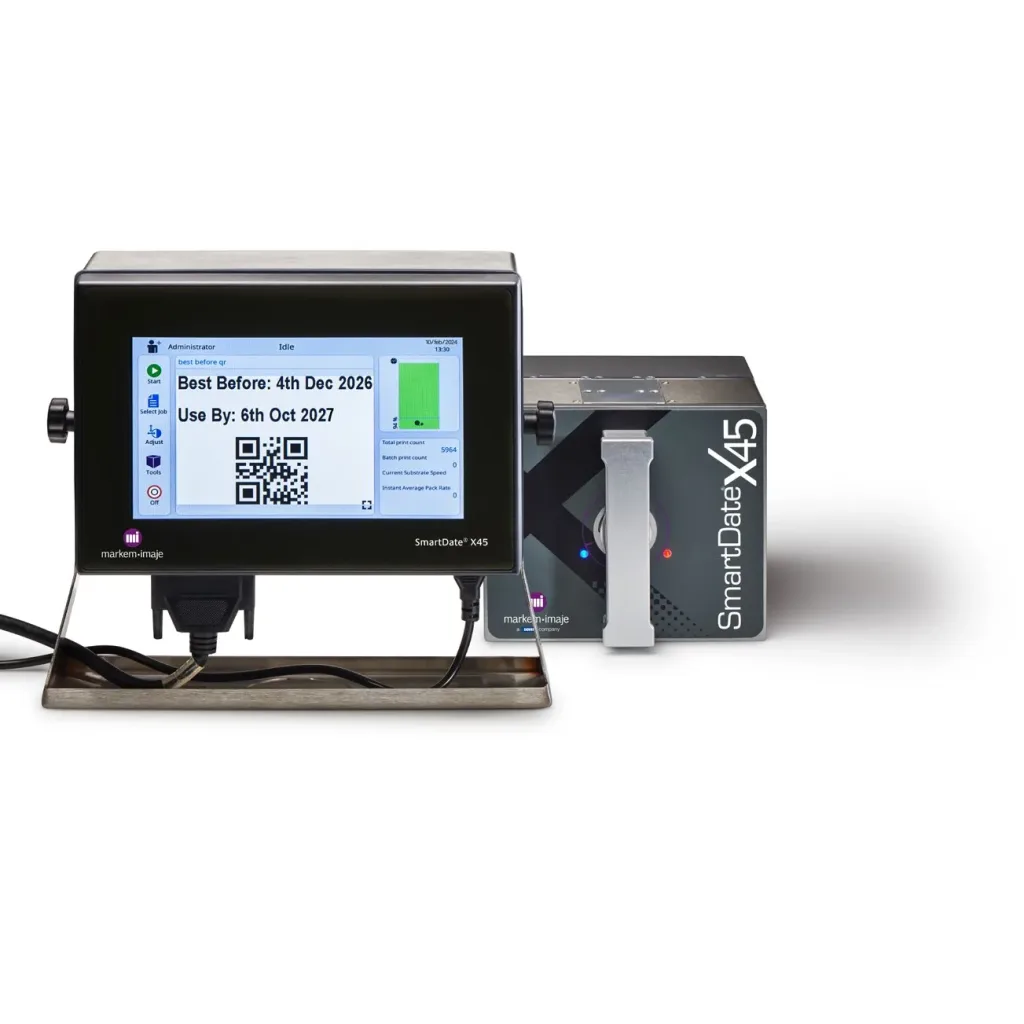

Application and Selection Guidance for Markem Imaje SmartDate TTO X45
For thermal-transfer overprinting projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
