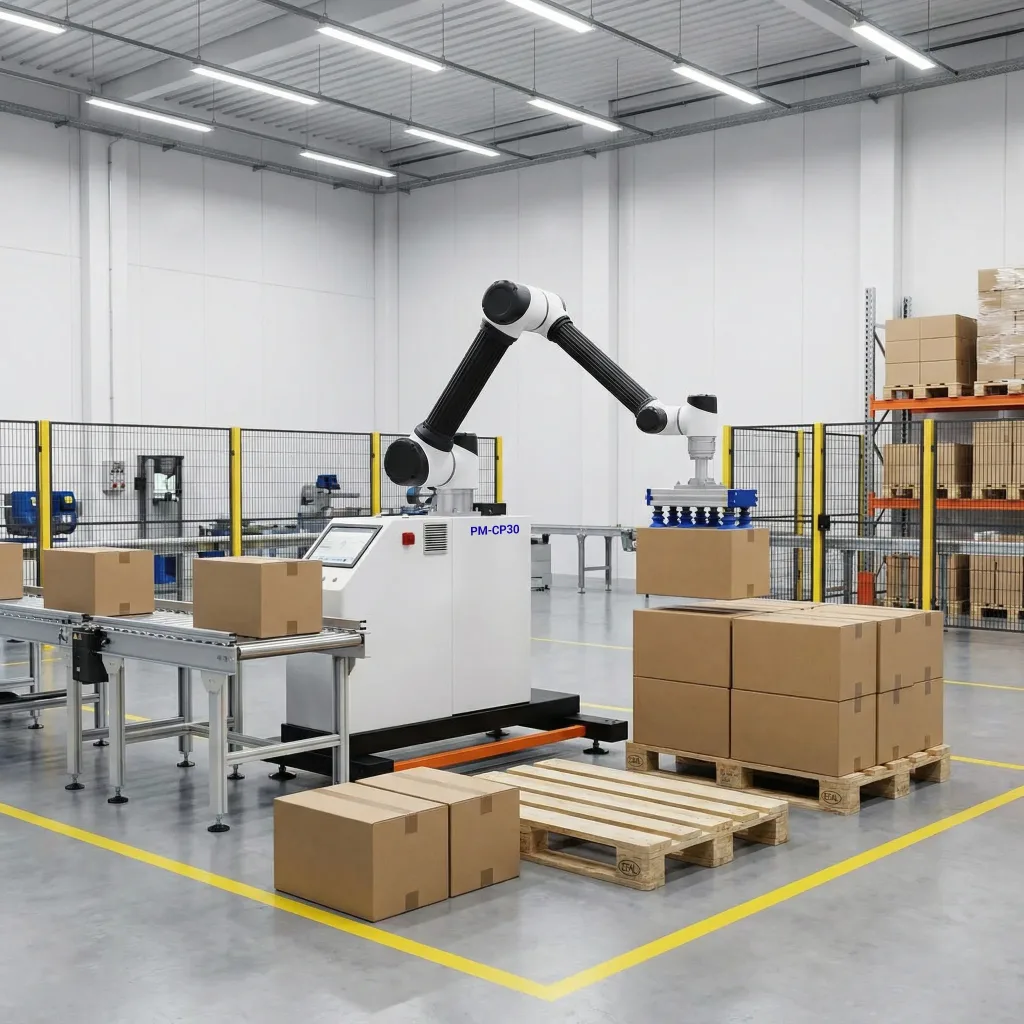

Product Description
As global manufacturing faces rising costs and labor shortages, the Collaborative Robot (Cobot) Palletizer has become an essential tool for modern factories. Unlike traditional industrial robots that require large spaces and safety fences, cobots are designed to work safely alongside human operators. This technology is ideal for industries such as food and beverage, pharmaceuticals, electronics, and e-commerce logistics, also an ultimate solution for manufacturers seeking to modernize their workforce through robust, user-friendly automation.
Advanced Features
Significant Labor Savings & Efficiency
Working 24/7 without getting tired, cobot palletizer significantly reduces manual labor by automating repetitive palletizing tasks. It boosts operational efficiency with consistent, high-speed performance while minimizing errors and downtime.
Precision Performance
With a repeat positioning accuracy of ±0.05mm, it ensures every pallet is perfectly aligned, improving stability during transport.
Intelligent Flexibility & Safety
This system can simultaneously stack two different carton sizes while managing dual-pallet stations on both sides. Integrated laser radar enables safe, cage-free operation by automatically slowing or stopping when people are detected.
World-Class Components
Reliability is guaranteed by our premium supply chain.
Controller: Advanced Robot Controller from KEBA (Austria) for surgical logic.
Drives: High-performance servo systems by Inovance, the market leader in China.
Sensors: Ultra-reliable photoelectric and detection switches from Panasonic (Japan).
Specifications：
|
Model |
PM-CP20 |
PM-CP30 |
PM-CP50 |
|
Max load weight |
20 kg |
30 kg |
50 kg |
|
Lifting cylinder |
/ |
600mm |
|
|
Working radius |
1480mm/1680mm/1880mm/2080mm |
||
|
Stacking speed |
6-12 times/min (according to the products) |
||
|
Pallet size |
L1200mm-W1200mm-H150mm |
||
|
Stacking height |
max 2500mm，lift height 600mm |
||
|
Machine size |
around L3330mm*W1730mm*H3100mm |
||
|
Height required |
Workshop should be higher than 2.6 meter |
||
|
Packing size |
2200mm*1450mm*1900mm |
||
|
Power |
3KW |
||
|
Power supply |
220V±10%，50Hz±5%，24V |
||
|
Gas supply |
0.5～0.7Mpa ,consumption：500L/min |
||
|
Weight |
Around 750 kg, including wood carton |
||
|
Noise |
< 80 decibels |
||
|
Cobot controller |
KEBA, Austria |
||
|
Serv motor |
Inovance |
||
|
Photoelectric detection switch |
Panasonic |
||
|
Power Supply |
Meanwell |
||
Advantages and Service Commitments:
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Application and Selection Guidance for PM-CP20/30/50
For industrial automation and line integration projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
