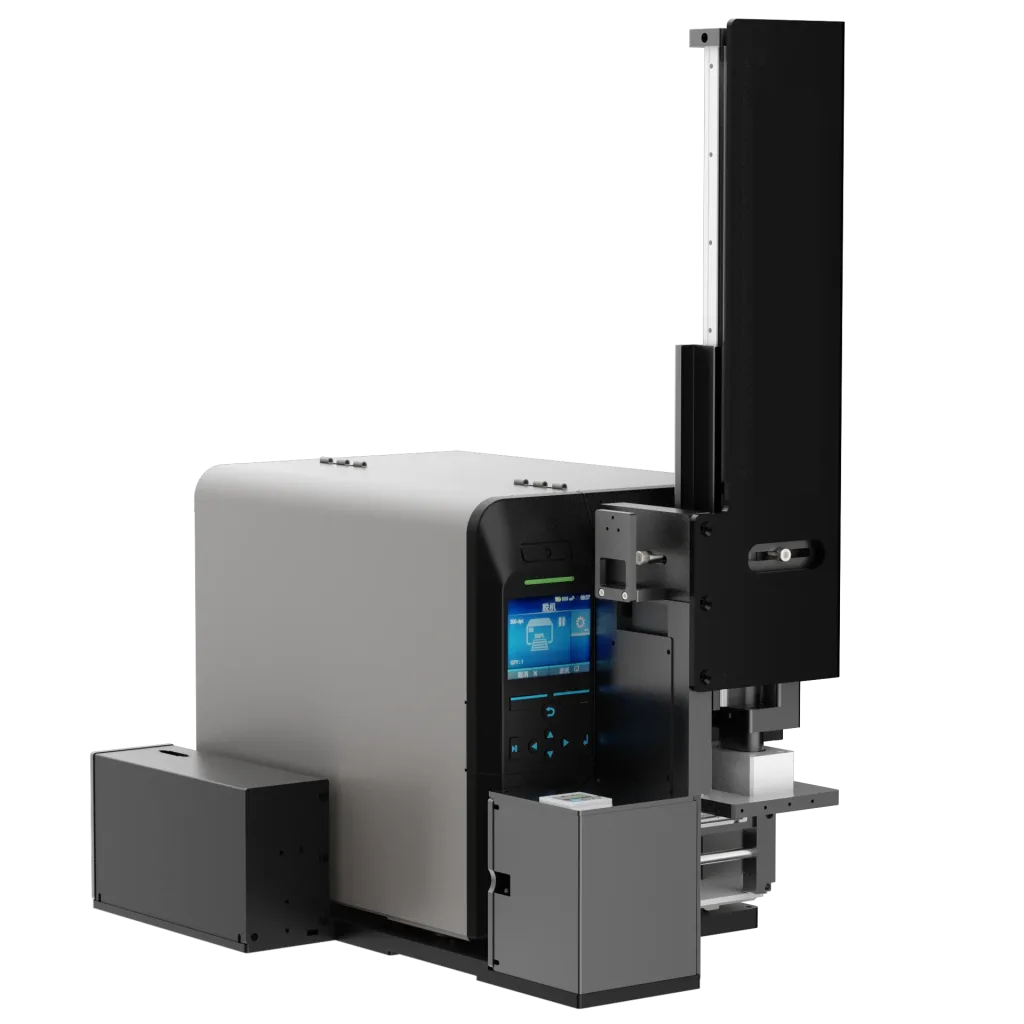

The PM-LPA10 Print and Apply Labeler integrates industrial-grade printing engines, control systems and pneumatic applicator arms to deliver real-time, high-precision label printing and application.Equipped with SATO, HONEYWELL or IPS printing engines, these machines support two core application methods: Tamp-on (for PM-LPA106T, PM-LPA107T, PM-LPA108T) and Swing-tamp (for PM-LPA106S).With stable performance, easy installation and strong compatibility, they are widely used in furniture, electronics, warehousing, packaging, food, tobacco, logistics, automotive assembly, electric power, apparel and other industries.
Advanced Capabilities：
- Integrated Design: All-in-one structure combining print engine, control system and applicator arm for seamless operation.
- High Precision Labeling: Static labeling accuracy of ±1mm ensures consistent, professional label placement.
- Flexible Label Compatibility: Supports label widths from 15–104mm and heights from 10–180mm, with max print width of 104mm.
- Multiple Communication Options: Standard interfaces include USB, Ethernet and RS-232, with optional WIFI/Bluetooth/RFID modules for extended connectivity.
- Reliable Control System: Powered by Panasonic PLC and LCD touchscreen, with intuitive visual operation and alarm indication.
- Stable Pneumatic System: Uses high-quality Airtac/SMC pneumatic components (cylinders, sensors, solenoid valves) for durable, consistent performance.
- Wide Industry Adaptability: Suitable for manufacturing, logistics and retail scenarios requiring on-demand, real-time labeling.
Specifications：
|
Model
|
PM-LPA106T
|
PM-LPA107T
|
PM-LPA108T
|
PM-LPA106S
|
|
Printing Engine
|
SATO
|
HONEYWELL
|
IPS
|
SATO
|
|
Application Method
|
Tamp-on
|
Swing-tamp
|
||
|
Applicator Arm
|
Pneumatic pressure arm (Rotatable)
|
Pneumatic pressure arm
|
||
|
Applicable Label
|
Width 22-104mm
height 20-180mm
|
Width 22–104mm
height 12.7-180mm |
Width 15–104mm
height 10-180mm |
Width 22–104mm
height 20-180mm |
|
Max Label Roll
|
Φ180mm, 76mm core
|
Φ203.2mm, 76mm core
(The total length of the labels can be 150M)
|
Φ203mm, 76mm core
(The total length of the labels can be 150M) |
Φ180mm, 76mm core
|
|
Print Resolution
|
203/305/609dpi (optional)
|
203/305dpi (optional)
|
203/300/600dpi (optional)
|
203/305/609dpi
(optional)
|
|
Print Method
|
Thermal transfer / Direct thermal
|
Thermal transfer / Direct thermal
/ Dual-color (not for 600dpi)
|
Thermal transfer / Direct thermal
|
|
|
Print Speed
|
203dpi: 355mm/s (14ips)
|
203dpi: 50–250mm/s
(2-10ips) |
203dpi: 304.8mm/s (12ips)
|
203dpi: 355mm/s (14ips)
|
|
305dpi: 355mm/s (14ips)
|
305dpi: 50–200mm/s
(2-10ips) |
300dpi: 254mm/s (10ips)
|
305dpi: 355mm/s (14ips)
|
|
|
609dpi: 152mm/s (6ips)
|
|
609dpi: 101.6mm/s (4ips)
|
609dpi: 152mm/s (6ips)
|
|
|
Max Print Width
|
104mm
|
|||
|
Ribbon Spec
|
Max length 600m/450m
|
Max length 300-450m
|
Max length 300-450m
|
Max length 600m/450m
|
|
Width 39.5–128mm
|
Width 30–110mm
|
Width 30–110mm
|
Width 39.5–128mm
|
|
|
Φ90mm
|
Φ80mm
|
Φ90mm
|
Φ90mm
|
|
|
Barcode Type
|
1D / 2D
|
|||
|
Communication
|
USB 2.0 Host, USB 2.0 Device, Ethernet interface, RS-232
|
USB2.0*1, USB Host*2, LAN*1,
RS232*1
|
RS-232C interface,
IEEE1284, LAN interface,
USB interface (Type A/B),
EXT interface
|
|
|
Optional: WIFI
|
Optional: GPIO compatible with
S-type and Z-type, parallel port
(selectable); WIFI, Bluetooth
(module)
|
Optional: WIFI
|
||
|
Labeling Accuracy
|
±1mm
|
|||
|
Labeling Speed
|
3.5s/pcs
|
5s/pcs
|
||
|
Labeling Stroke
|
400mm(Effective travel 270mm)
300mm(Effective travel 170mm)
|
400mm(Effective travel 270mm)
300mm(Effective travel 170mm)
Other customization options are available.
|
400mm; Other
customization options are available.
|
|
|
Optional components
|
–
|
–
|
UHF RFID module, left panel, top panel, right panel
|
–
|
|
Control System
|
Panasonic PLC, I/O signal board, LCD touch screen display
|
|||
|
Pneumatic Parts
(Airtac/SMC)
|
cylinder, sensor, solenoid valve, vacuum generator
|
cylinder, sensor, solenoid valve
|
||
|
Signal Output
|
14PIN
|
9PIN
|
14PIN
|
|
|
Air Pressure
|
0.5–0.6MPa
|
|||
|
Dimensions (L×W×H)
|
558.6×338.6×644mm
|
540×330×650mm
|
538.2×326×653.15mm
|
1001.6×353.3×330mm
|
|
Weight
|
26kg
|
21kg
|
30kg
|
|
|
Power Supply
|
AC100-240V-5A, 50-60Hz
|
|||
|
Typical Applications
|
Furniture, electronics, warehousing, packaging, food, tobacco, logistics, automotive assembly, electric power, apparel
|
|||
Our Core Advantages:
20 Years Experience
Over 20 years of experience in industrial coding and marking.
We have provided professional solutions for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machines. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before placing an order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least a one-year warranty for all of our machines.
Excellent Service Team
Quick and highly efficient response from our professional service team.
Overseas training and installation are available.
Fast Delivery
We can fulfill most orders within 7 days. Safe packing and quick delivery allow distributors to accelerate market launch.
Overseas After-sales Engineers
Our overseas after-sales team consists of veteran senior engineers with More than 20 years of hands-on experience.
Typical Applications
Application and Selection Guidance for PM-LPA10
For print-and-apply labeling projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
