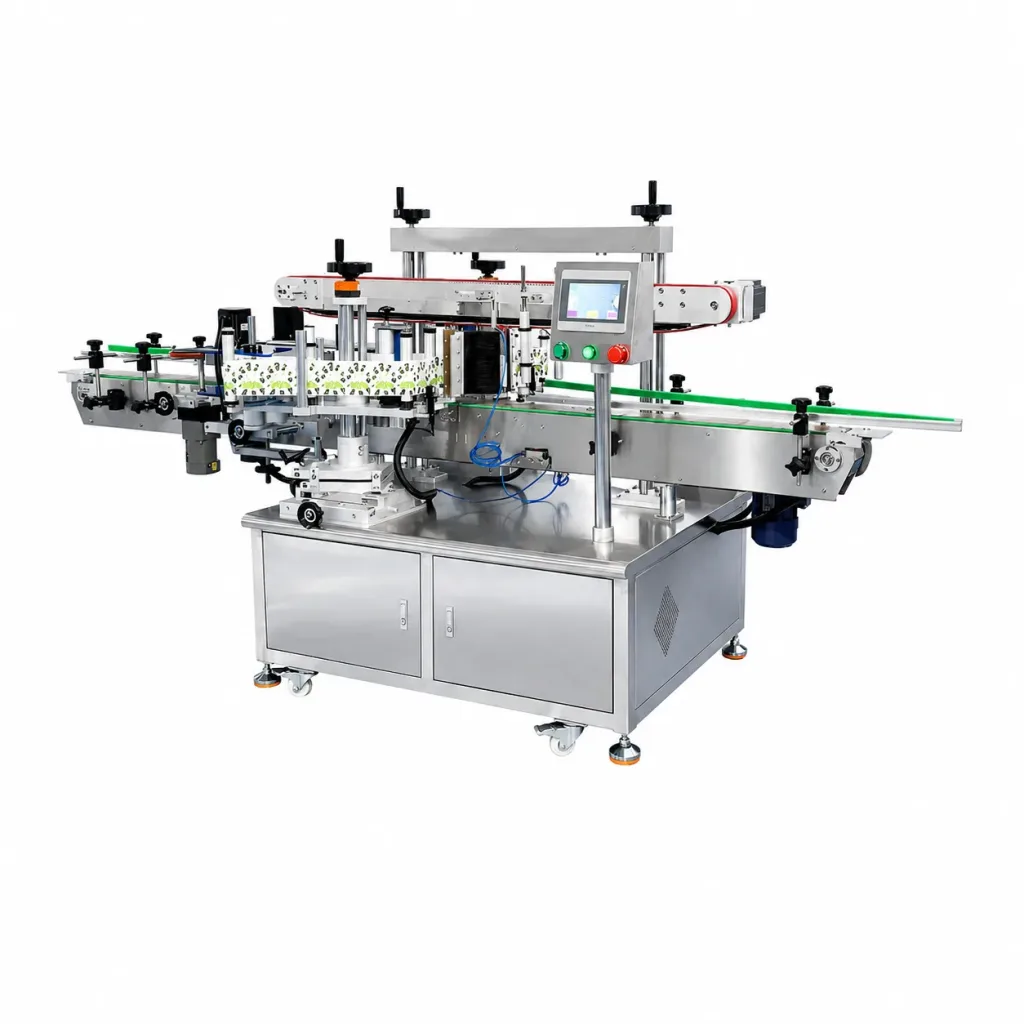

Product Description
Description：
Advanced Capabilities：
- Advanced Auto-Positioning: Ensures precise, consistent single/double-sided labeling with up to ±1mm accuracy, eliminating misalignment and reducing material waste.
- Flexible Application: Dual switchable labeling heads for both single and double-sided labeling, adapting to diverse labeling needs.
- Efficient Integration: Built-in automatic conveyor, supports standalone use or integration with filling, capping and sealing equipment.
- Easy Setup: 8-dimensional adjustable labeling head enables quick, tool-free adjustment for various bottle types (round, square, flat).
- Wide Application for Various Round Bottles:Ideal for square and flat bottles in lubricants, detergents, beverages, toiletries, honey, sauces, health care and chemical industries.
Specifications：
|
Label Speed
|
30～160 pcs/min (depending on product and label size)
|
|
|
Label Size
|
Length: 20-200mm; Width (inc. backing): 20-175mm
|
|
|
Label Direction
|
Left/Right-hand; Side labeling
|
|
|
Product Size Range
|
20-250mm (L) × 40-100mm (W) × 60-280mm (H)
|
|
|
Label Accuracy
|
better than ± +1mm
|
|
|
Label Machine Size
|
3000mm×1450mm×1600mm
|
|
|
Power Supply
|
220V/50HZ
|
|
|
Weight
|
300KG
|
|
|
Configuration
|
PLC control;Sensor;Touch screen;,paging machine
|
|
|
Additional features
|
Can add the Label requirement
Can add transparent sensor
Can add inkjet printer or laser printer
barcode printer
|
|
|
Applicable Labeling
Products
|
square flat bottles such as: lubricating oil, car cleaner, glass water, mineral water, mineral water, beverage bottles, laundry liquid bottles, oil smoke net, honey, chemical reagent bottles, shampoo, health wine, nut bottles, cookie bottles, chili oil bottles, chili sauce bottles
|
|
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machines. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before placing an order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least a one-year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Overseas After-sales Engineers
Our overseas after-sales team consists of veteran senior engineers with More than 20 years of hands-on experience.
Typical Applications
Application and Selection Guidance for ST-L500A
For print-and-apply labeling projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
