Product Description

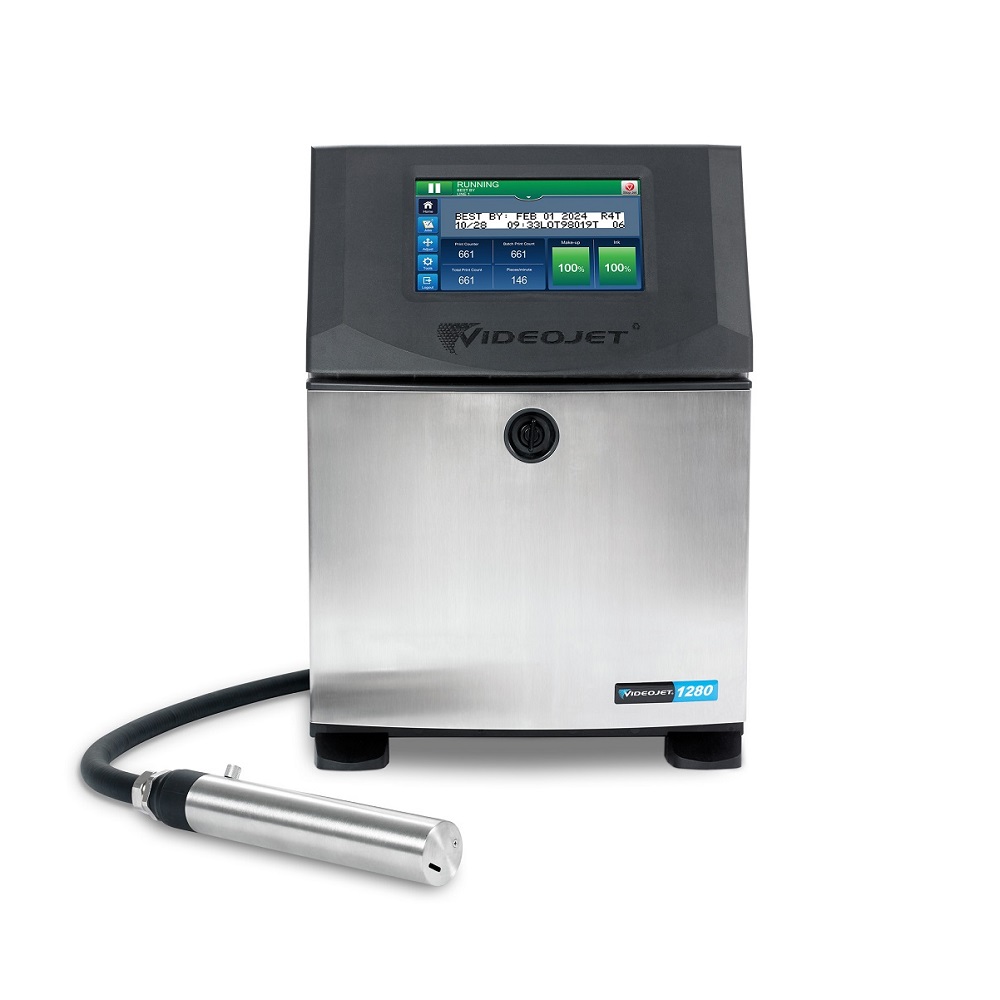

Videojet has redefined simple with the Videojet 1280 Continuous Inkjet (CIJ) Printer. From the intuitive interface to smart design features, the 1280 CIJ printer is simple for all operators to use.
The 1280 CIJ printer features an 8” tablet-inspired SIMPLICiTY interface, greatly reducing operator printer interactions, and helping to eliminate potential user errors.
One quick and easy-to-replace Videojet SmartCell service module helps to ensure you receive maximum line productivity and no additional downtime.
Our no mess, no waste, no mistake Videojet Smart Cartridge system drains all fluids from the cartridge, and offers additional protection against leakage during transport and handling.
With optional VideojetConnect Remote Service, your team can gain instant access to the world’s largest network of CIJ experts, connecting the Videojet technician directly to your production line for immediate assistance.
Specifications：
| Screen size | 8” high-response TFT-LCD touch screen WYSIWYG |
| Dots | 34 Dots Matrix |
| Nozzle size | 60um/70um Optional |
| Print height | 2-10 mm |
| Print distance | 5-15 mm, 12mm best |
| Print line | 1-5 Lines |
| Print fonts | Single-line: 5X5, 5×7, 5X7 Tower, 7×9, 9×12, 10×16, 16×24, 25×34 Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16 Tri-line: 5×5, 5×7, 7×9 Quad-line: 5×5, 5×7 Five-line: 5×5 |
| Maximum line speed | 162 m/min |
| Print content | Text, counting, barcode, QR code, custom graphics, database, class |
| Languages | English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese |
| Printhead umbilical | 2m (optional 3m) |
| Custom logo/graphics | Can be created via optional CLARiSOFTTM software |
| Fluids containers | 750ml Ink and Makeup Small Cartridge |
| Input/output | Product detect input Encoder input Beacon (Alarm light) output Relay output USB 2.0 (2x) Ethernet LAN |
| Approximate weight | 18KG |
| Electrical Requirements | Nominal supply power 100-240 VAC at 50/60 Hz, 70W |
| Temperature Range | 32°F to 122°F (0°C to 50°C) 0% to 90% RH non-condensing With selected inks; actual installation may require additional hardware based on production environment conditions |
| Protection Rating | IP55 |
Benefits:
Uptime Advantage
- Leveraging proven and innovative technologies from Videojet legacy models
- Modular wear parts enable easy and reliable replacement by the customer, therefore reducing downtime
- Ability to connect to optional VideojetConnect™ Remote Service for direct access to our technical experts
Simple Usability
- 8” touchscreen display is intuitive to the operator without the need for extensive training
- On-board ‘How to’ videos greatly reduce the need for having an operator manual to hand
- The Videojet SmartCell™ design allows for simple, user-performed preventative maintenance
Code Assurance
- Tablet-like functionality enhances an operator’s ability to learn the interface to reduce coding errors
- The Videojet SIMPLICiTY™ user interface greatly reduces operator printer interactions, helping to eliminate potential user errors through an intuitive, 8” touchscreen display
- User definable message rules can automate code content without need of operator interaction
Built-in Productivity
- No mess, no waste, no mistake Videojet Smart Cartridge™
- Reduce waste and rework with the step-by-step guides in the easy-to-use operator interface
- Workflow modules expand functionality
- Automated message rules reduce operator interaction
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least one year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Typical Applications
Application and Selection Guidance for Videojet 1280
For continuous inkjet coding projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
