Product Description

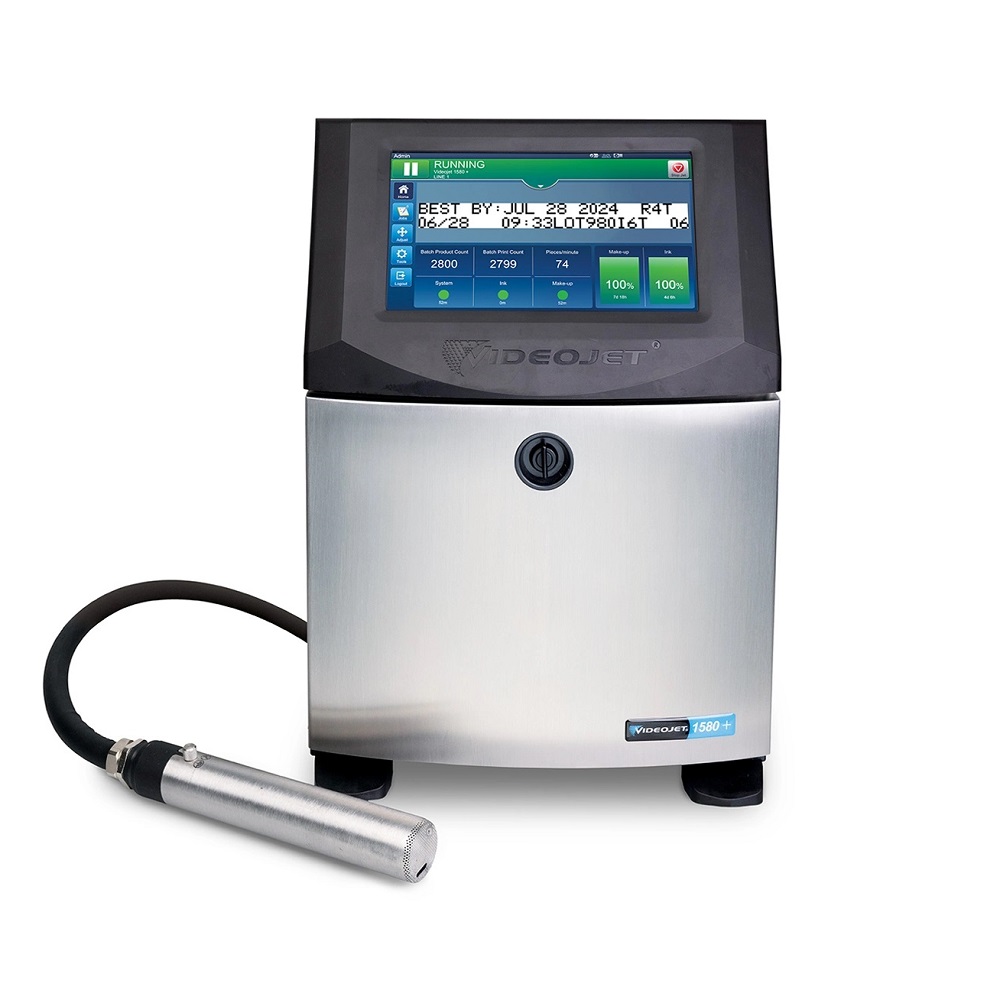

Designed to deliver improved printer performance and operator effectiveness, the Videojet 1580 + continuous inkjet (CIJ) printer offers simple operation, reduced maintenance and superior print quality during every day operation. The 1580 + CIJ printer utilizes printer consumption to assess and suggest improvements on how the printer is used, helping to reduce total cost of ownership (TCO). The built-in Wi-Fi allows the printer to connect to an internal network, making the printer more mobile. Cellular connectivity gives your printer direct access to the Videojet cloud without needing involvement from IT.
Specifications：
| Screen size | 10.4” high-response TFT-LCD touch screen |
| Dots | 34 Dots Matrix |
| Nozzle size | 60um/70um Optional |
| Print height | 2-10 mm |
| Print distance | 5-15 mm, 12mm best |
| Print line | 1-5 Lines |
| Print fonts | Single-line: 5X5, 5×7, 5X7 Tower, 7×9, 9×12, 10×16, 16×24, 25×34 Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16 Tri-line: 5×5, 5×7, 7×9 Quad-line: 5×5, 5×7 Five-line: 5×5 |
| Maximum line speed | 278 m/min |
| Print speed | 1 Line 5*5: 279m/min 1 Line 5*7: 244m/min 2 Lines 5*7: 81m/min 3 Lines 5*7: 27m/min 4 Lines 5*7: 17m/min |
| Print content | Text, counting, barcode, QR code, custom graphics, database, class |
| Languages | English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese |
| Printhead umbilical | 3m / 6m |
| Custom logo/graphics | Can be created via optional CLARiSOFTTM software |
| Fluids containers | 750ml Ink and Makeup Small Cartridge |
| Input/output |
Product detect input |
| Options | Dust protection kit with CleanFlow technology Dry air kit for high humidity (requires plant air) Cellular communication RS232 connector kit (USB to Serial DIN-5 male adapter) SIMPLICiTY Workflow Modules Wide range of accessories |
| Approximate weight | 21KG |
| Electrical Requirements | Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W |
| Temperature Range | 32°F to 122°F (0°C to 50°C) 0% to 90% RH non-condensing With selected inks; actual installation may require additional hardware based on production environment conditions |
| Protection Rating | IP55 standard, no plant air required, stainless steel cabinet IP65 protected electronics optional |
Benefits:
Uptime Advantage
- Prevent a downtime event with an additional 8 hours minimum of runtime using a make-up reserve tank that protects your production under normal operating conditions
- Replace preventive maintenance components easily and reliably, with no additional production downtime
- Videojet Dynamic Calibration automatically maintains superior print quality, for optimum uptime under changing environmental conditions
- With Rapid Recover, an onboard advanced automated troubleshooting solution quickly determines if a printer failure can be easily repaired or if a spare printer needs to be deployed, enabling line recovery within 20 minutes
- When combined with VideojetConnect™ Remote Service, Rapid Recover can backup and restore via the cloud in case a swap is needed
Simple Usability
- Lower the opportunity for coding errors with intelligent message creation functionality
- Automate code content without the need for operator interaction with user definable message rules
- Streamline message creation and job set-up to start coding products quicker
Code Assurance
- Eliminate potential user errors through a Videojet SIMPLICiTY™ interface that greatly reduces operator printer interactions
- Easy to operate tablet-inspired 10” touchscreen display that is intuitive to you and translated to native language
- Customize interfaces with built-in wizards, and access guided video tutorials for routine printer tasks
Built-in Productivity
- Built-in Wi-Fi and webserver capability provide easy and secure wireless communication
- Analyze your individual use patterns and recieve printer improvement opportunities via on-screen alerts
- Access technical experts at the touch of a button through optional VideojetConnect™ Remote Service (depending on local availability)
- Web Server provides you the possibility to interact with the printer remotely, through any browser located on the same network to change settings, start and stop the jet, create and edit jobs, and much more
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least one year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Typical Applications
Application and Selection Guidance for Videojet 1580
For continuous inkjet coding projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
