Product Description

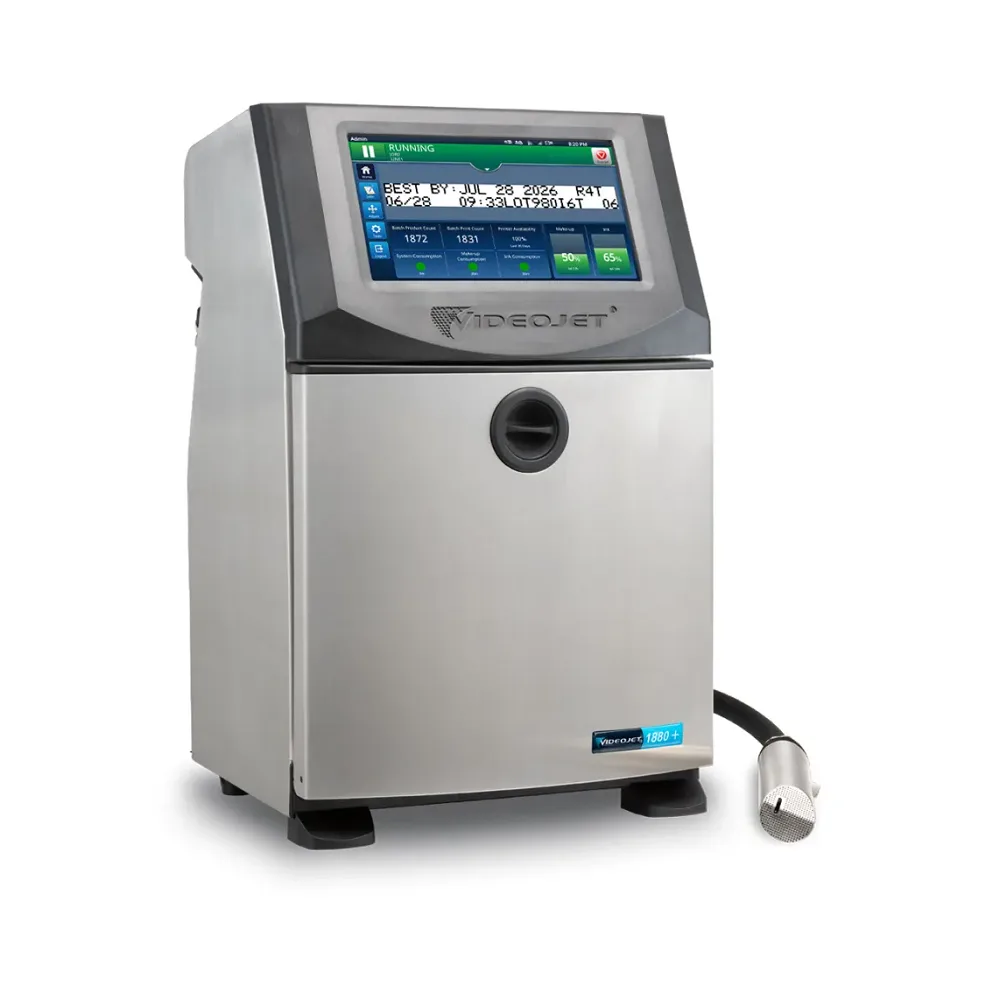

The 1880 + continuous inkjet (CIJ) printer is built on the high-speed 1880 platform, and redefines excellence through enhanced design and comprehensive integrated connectivity options. This printer delivers non-contact inkjet printing for almost any substrate, including flat or curved surfaces.
With a built-in vital sign monitoring system, smart alerts, on-demand remote technical support, Wi-Fi connectivity, and an advanced automated troubleshooting program, the 1880 + anticipates potential printer issues in time for you to avoid them and enables you to recover faster shoulddowntime still occur.
Specifications：
| Screen size | 10.4” 16:9 high-response TFT-LCD touch screen |
| Dots | 34 Dots Matrix |
| Nozzle size | 60um/70um Optional |
| Print height | 2-10 mm |
| Print distance | 5-15 mm, 12mm best |
| Print line | 1-5 Lines |
| Print fonts | Single-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34 Twin-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16 Tri-line: 4×5, 5×5, 4×7, 5×7, 7×9 Quad-line: 4×5, 5×5, 4×7, 5×7 Five-line: 5×5 |
| Maximum line speed | 334 m/min |
| Languages | English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese |
| Printhead umbilical | 3m / 6m |
| Custom logo/graphics | Can be created via optional CLARiSOFTTM software |
| Fluids containers | Ink and Make-up Smart Cartridge 1.06 qt (1000ml); optional 0.793 qt (750ml) |
| Input/output |
Product detect input |
| Options | Dust protection kit with CleanFlow technology Dry air kit for high humidity (requires plant air) Cellular communication RS232 connector kit (USB to Serial DIN-5 male adapter) SIMPLICiTY Workflow Modules Wide range of accessories |
| Approximate weight | 21KG |
| Electrical Requirements | Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W |
| Temperature Range | 32°F to 122°F (0°C to 50°C) 0% to 90% RH non-condensing With selected inks; actual installation may require additional hardware based on production environment conditions |
| Protection Rating | IP55 standard, no plant air required, stainless steel cabinet IP65 protected electronics optional |
Benefits:
Harness digital capabilities
- Reduce downtime with the Videojet MAXIMiZE™ advanced diagnostics suite
- React sooner to faults and minimize the need for on-site service calls with VideojetConnect Remote Service™
- With Rapid Recover, an onboard advanced automated troubleshooting solution quickly determines if a printer failure can be easily repaired or if a spare printer needs to be deployed, enabling line recovery within 20 minutes
- When combined with VideojetConnect™ Remote Service, Rapid Recover can backup and restore via the cloud in case a swap is needed
- Web Server provides you the possibility to interact with the printer remotely, through any browser located on the same network to change settings, start and stop the jet, create and edit jobs, and much more
Right code at the right quality
- Clean the printhead only when needed, thanks to the unique ink build-up sensor
- Simplify printhead cleaning to just a push of a button with the auto-rinse feature
- Remove the potential for human error with the suite of line integration and code management capabilities
Minimize operator interventions
- Go longer between printhead cleanings with intelligent start-stop sequence
- Increase make-up cartridge changeover interval by up to 2x with reduced make-up consumption and 1L cartridge option
- Easily accommodate operator-performed annual maintenance that takes just 5 minutes per year
Natural fit in your line
- Achieve maximum line productivity and reduce downtime with easy-to-replace SmartCell™ components
- Reduce training from the intuitive SIMPLICITY™ user interface and on-board videos that guide users through common tasks
- Select from a wide variety of safer, more sustainable inks engineered to meet your application
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least one year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Typical Applications
Application and Selection Guidance for Videojet 1880
For continuous inkjet coding projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
