Product Description
Description：

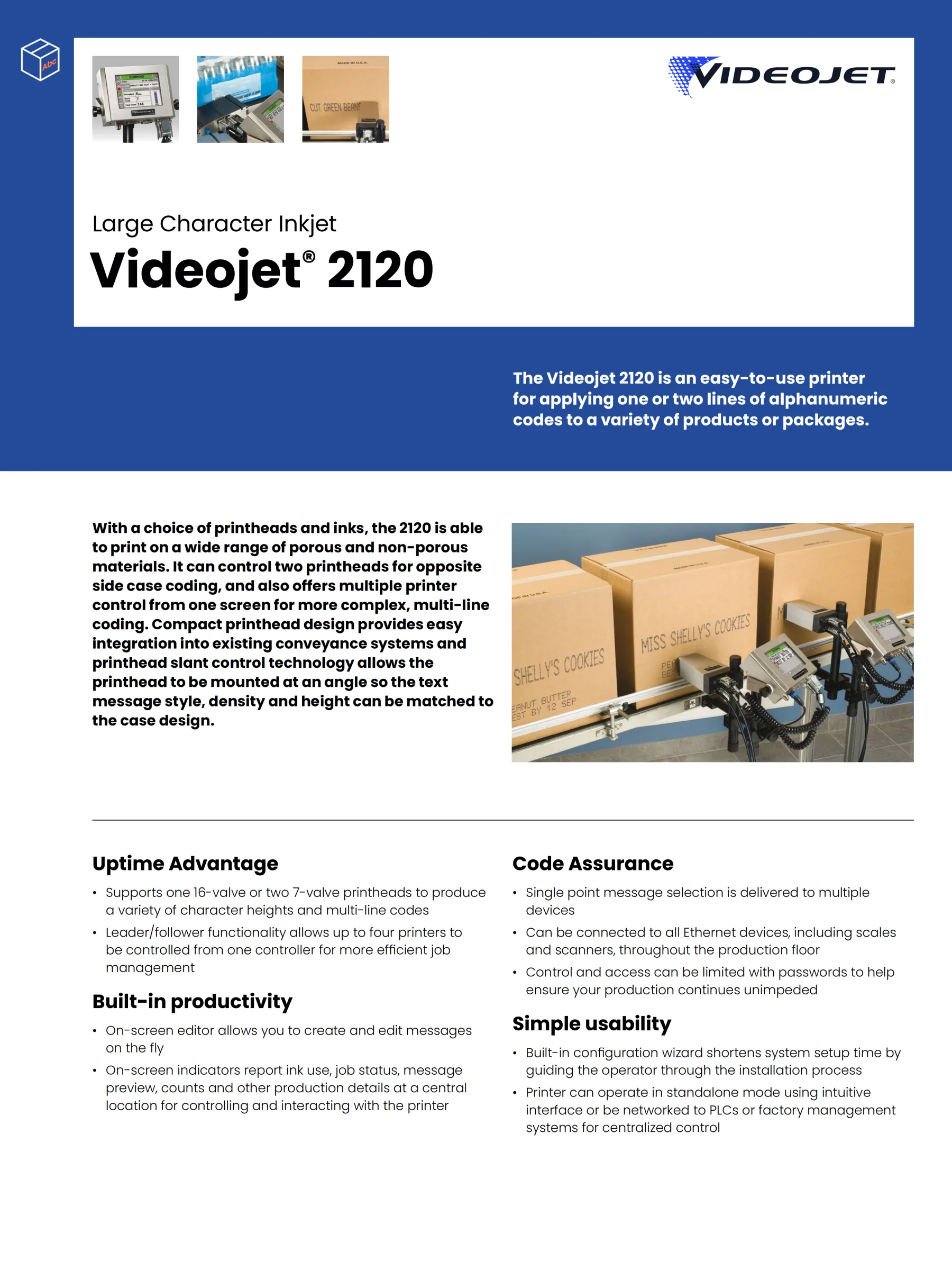

2120 is able to print on a wide range of porous and non-porous materials. It can control two printheads for opposite side case coding, and also offers multiple printer control from one screen for more complex, multi-line coding. Compact printhead design provides easy integration into existing conveyance systems and printhead slant control technology allows the printhead to be mounted at an angle so the text message style, density and height can be matched to the case design..
- Uptime Advantage
- Code Assurance
- Built-in productivity
- Simple usability

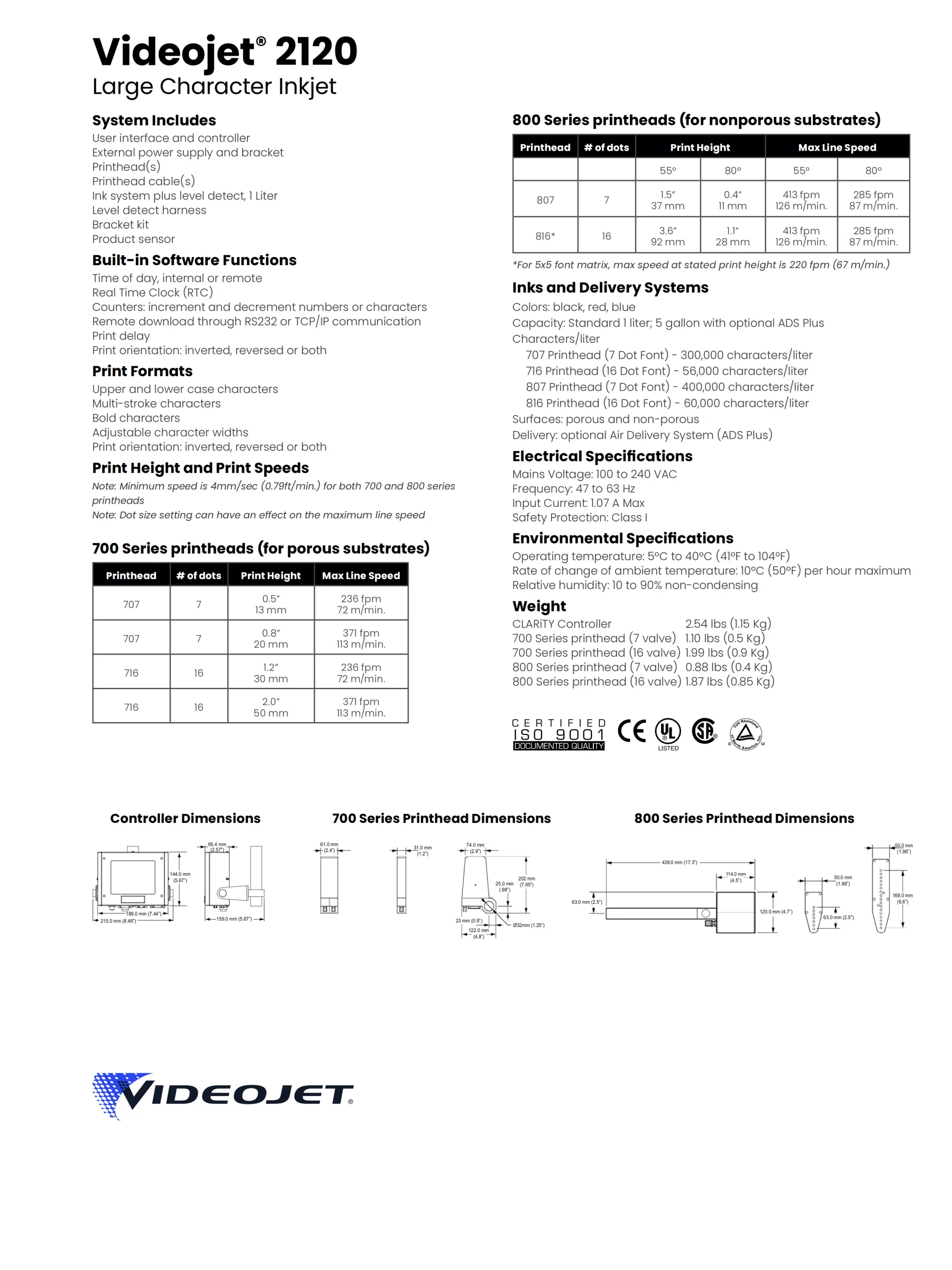

Specifications：
| Model | 807 (one head of 7 dots) | 816 (one heads of 16 dots) |
| System Includes | User interface and controller External power supply and bracket Printhead(s) Printhead cable(s) Ink system plus level detect, 1 Liter Level detect harness Bracket kit Product sensor |
|
| Built-in Software Functions | Time of day, internal or remote ; | Real Time Clock (RTC) |
| Counters: increment and decrement numbers or characters | Print orientation: inverted, reversed or both | |
| Print Formats | Upper and lower case characters Multi-stroke characters Bold characters |
Adjustable character widths Print orientation: inverted, reversed or both |
| Controller Net Weight | 2000g | |
| Print Speeds | Note: Minimum speed is 4mm/sec (0.79ft/min.) for both 700 and 800 series printheads Note: Dot size setting can have an effect on the maximum line speed |
|
| Printing Height | 11-37 mm | 28-92 mm |
| Inks | black | red, blue |
| Capacity | Standard 1 liter; 5 gallon with optional ADS Plus | |
| Characters/liter | 1. 707 Printhead (7 Dot Font) – 300,000 characters/liter | |
| 2. 716 Printhead (16 Dot Font) – 56,000 characters/liter | ||
| 3. 807 Printhead (7 Dot Font) – 400,000 characters/liter | ||
| 4. 816 Printhead (16 Dot Font) – 60,000 characters/liter | ||
| 5. Surfaces: porous and non-porous | ||
| 6. Delivery: optional Air Delivery System (ADS Plus) | ||
| Electrical Specifications | Mains Voltage: 100 to 240 VAC Frequency: 47 to 63 Hz Input Current: 1.07 A Max Safety Protection: Class I |
|
| Environmental Specifications | Operating temperature: 5ºC to 40ºC (41ºF to 104ºF) | |
| Rate of change of ambient temperature: 10ºC (50ºF) per hour maximum | ||
| Relative humidity: 10 to 90% non-condensing | ||
| Product Certification | CE, FCC | |
Advantages and Service Commitments
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications
Application and Selection Guidance for Videojet 2120
For large-character industrial printing projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
