Product Description
Description：
-

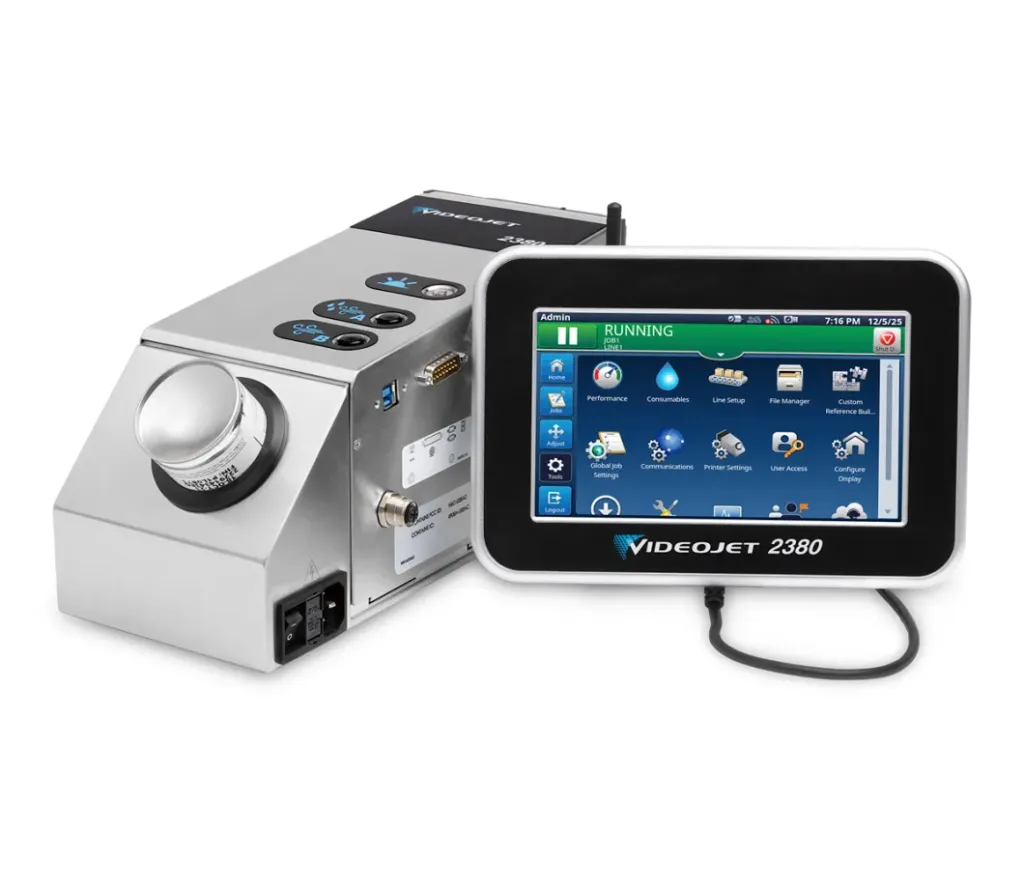

The 2380 printer is a versatile solution that adapts to your uniquemarking and coding requirements.
- The 2380 delivers continuously reliable high-quality codes on corrugated cardboard and other porous materials.
- A touchscreen user interface offers on board job editing and can be placed in an optimal position for the operator.
-
The 2380 is made of durable 304-grade stainless steel, ideal for
secondary production environments.
Specifications：
|
Print Speed
|
Bar code printing – 0.6 to 66mpm (2.0 to 216ft/min.)
Alphanumeric text – up to 132mpm (433ft/min.)
Speeds are density dependent
|
|
|
Print Distance
|
0.5mm to 4.0mm max. (0.02 – 0.15”)
|
|
|
Print Area (per printhead)
|
70mm (H) x 2000mm (L) (2.8” x 78”), 180 dpi
|
|
|
Bar Codes
|
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; Code 39; Interleaved 2 of 5;RSS/GS1 Databar (including 2D composite codes); DataMatrix; QR codes
|
|
|
User Interface
|
8″ high-response TFT-LCD touch screen
|
|
|
On-Board Memory
|
8 GB memory
|
|
|
Inputs / Outputs
|
1 product detect input, 1 DB15 interface integrated shaft encoder input, job select inputs,
24VDC output, 3 configurable inputs, and outputs for driving relay control or beacon
1 DB9 interface for sharing product detect and encoder signal between printers
1 USB 2.0 host
|
|
|
Supported Field Types
|
Fixed, variable (user entered), merged, database, counters, date, offsets, time,
paragraph (Text Blocks)
Basic shape drawing (circles, rectangles etc.)
|
|
|
Connectivity Options
|
RS232, dual Ethernet and Wi-Fi
|
|
|
Operation Modes
|
Single printhead in standard mode, two printheads in leader/follower mode
|
|
|
Network Control Software
|
CLARiNETTM network management software
|
|
|
Ink/Ink System
|
Non-pressurized, screw-in canister; 175ml or 365ml
Colors available: black, blue, green, orange, purple, red, yellow
|
|
|
Power Supply
|
100V-240VAC, 50/60HZ, 50W
|
|
|
Weight
|
Unboxed: 3.75kg (8.3lbs); Boxed: 7.4kg (16.3lbs) (single head)
|
|
|
Product Certification
|
CE, FCC
|
|
MOQ：：1 sets
Advantages and Service Commitments
1.20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
2.Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
3.Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
4.Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
5.Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
6. Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications
Application and Selection Guidance for Videojet 2380
For large-character industrial printing projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
