Product Description
Description：
- Optimize maintenance labor by removing common wear and adjustment parts
- Built in pack/case detect sensor eliminates the need for additional components, simplifying integration and set-up
- Clean, robust design helps protect components during operation
- Eliminate label jams for common top or side labeling applications
- Virtually eliminate operator errors, helping to ensure products are coded correctly with built-in Code Assurance software features
- Includes embedded Wi-Fi for secure remote access and analytical capabilities
- Intelligent emulation capabilities include EtherNet/IP™, PROFINET®, Zebra, SATO and CoLOS protocols
Remove end-of-line inefficiencies and costs in your labeling operations
- Intelligent Motion™ technology delivers automatic control of the system and eliminates the added parts and adjustments that can make other labeling machines fail
- A direct drive controls label speed and position without clutches, rollers or adjustments
- Electronic supply reel automatically adjusts and maintains tension irrespective of speed and label size
- Perform label and ribbon changes in less than 60 seconds
- Single simple 8-inch user interface for easy control
- Onboard support videos guide the operator through routine tasks
- Flexibility to position user interface remotely
- Ability to access the interface on a connected network, including via mobile devices
Specifications：
|
Application method
|

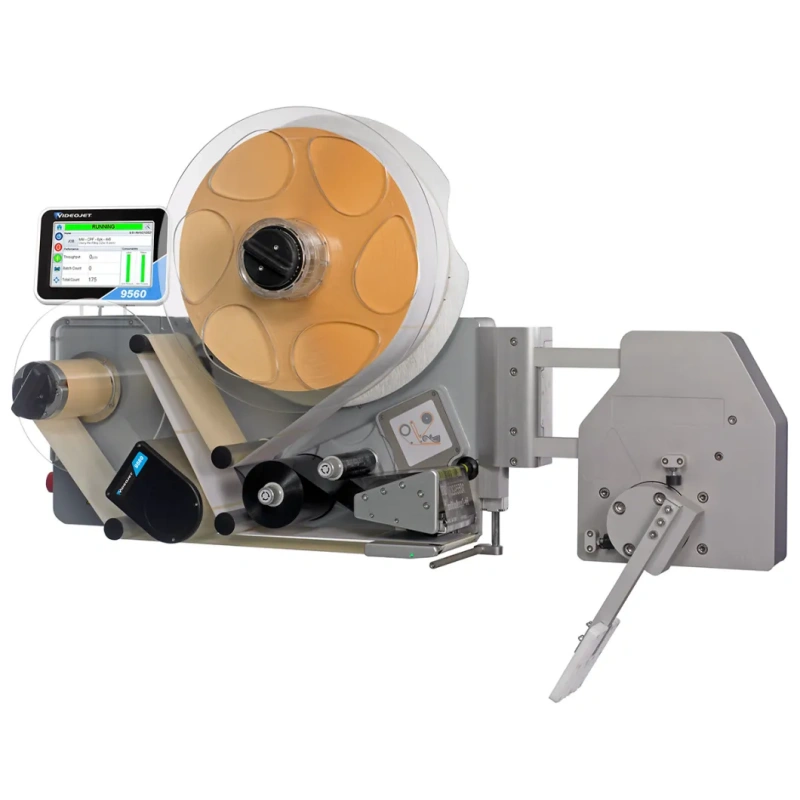

Top mount swing arm with 12.0” (305mm) reach
|
|
|
Print technology
|
Thermal Transfer printing with Intelligent MotionTM Ribbon Drive and Direct Thermal
53mm, 76mm and 107mm printhead versions
|
|
|
Print resolution
|
300dpi / 200dpi emulation mode
|
|
|
Printhead health monitoring
|
Tool-free quick release printhead replacement
|
|
|
Print speed
|
1.6 – 19.7inches/sec (40 – 500mm/sec ) in one inch increments
|
|
|
Ribbon specification
|
Width: 2.2” (55mm), 3.0” (76mm) and 6.0” (160mm) standard
Capacity: Up to 830m, including automatic ribbon save; 500m with 160mm unit only
|
|
|
Label specification
|
Label Width 2.0” to 4.5” (50mm to 115mm); dependent on printhead version
Label Length 2.0” to 5.9” (50mm to 150mm)
|
|
|
Tamp sizes
|
Standard: 100mm x 100mm
Optional: 50mm x 120mm, 75mm x 120mm, 100mm x 50mm, 100mm x 70mm,
100mm x 150mm
|
|
|
Bar codes supported
|
EAN 8, EAN 13, UPC-A, UPC-E, Code 39, GS1-128, Code 128, ITF, RSS (including
2D composite codes); others available upon request
|
|
|
Applicable certifications
|
CE, TüV
|
|
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machines. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before placing an order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least a one-year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Overseas After-sales Engineers
Our overseas after-sales team consists of veteran senior engineers with More than 20 years of hands-on experience.
Typical Applications
Application and Selection Guidance for Videojet 9560
For print-and-apply labeling projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
