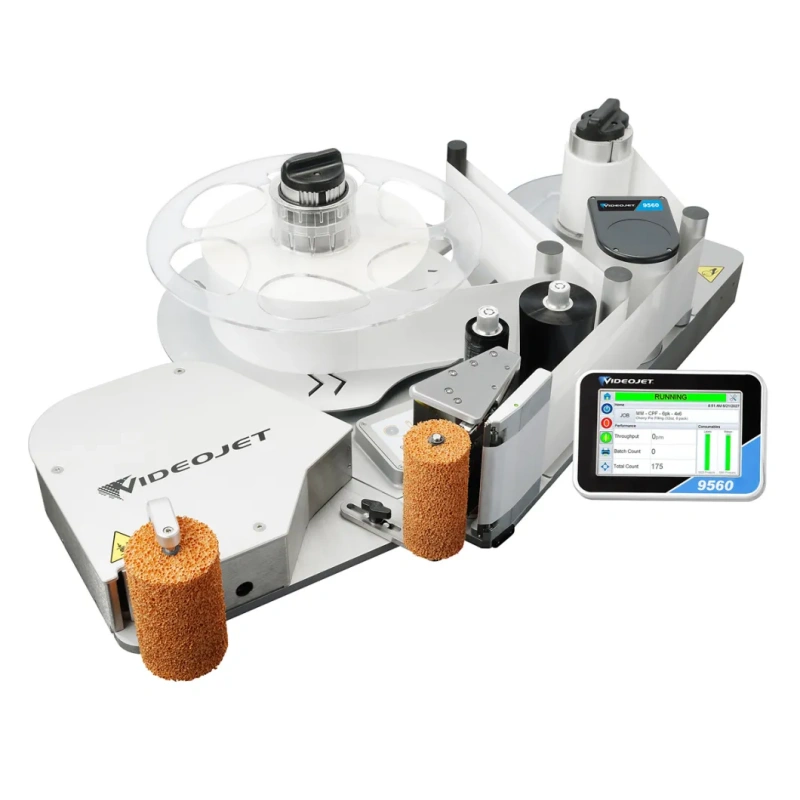

Name: Videojet 9560 Corner Wrap Print & Apply Labeler
Brand: Videojet
SKU: Videojet 9560

Product Description

Description：

Intelligent Motion™technology automatically and precisely controls the entire system, helping to remove operational downtime often caused by label jams and snagged labels. A robust and simply designed applicator makes it easy to use, plus an integrated pack detect feature helps ensure accurate label placement. The 9560 with Corner Wrap applicator is ideal for cases or shrink wrapped products where the label must be applied across adjacent panels so that label information can be seen in various orientations.

Industry-proven labeling technology

Optimize maintenance labor by removing common wear and adjustment parts
Built in pack/case detect sensor eliminates the need for additional components, simplifying integration and set-up
Clean, robust design helps protect components during operation
Eliminate label jams for common top or side labeling applications

Seamless connectivity and compatibility

Virtually eliminate operator errors, helping to ensure products are coded correctly with built-in Code Assurance software features
Includes embedded Wi-Fi for secure remote access and analytical capabilities
Intelligent emulation capabilities include EtherNet/IP™, PROFINET®, Zebra, SATO and CoLOS protocols

Remove end-of-line inefficiencies and costs in your labeling operations

Intelligent Motion™ technology delivers automatic control of the system and eliminates the added parts and adjustments that can make other labeling machines fail
A direct drive controls label speed and position without clutches, rollers or adjustments
Electronic supply reel automatically adjusts and maintains tension irrespective of speed and label size

Simple usability

Perform label and ribbon changes in less than 60 seconds
Single simple 8-inch user interface for easy control
Onboard support videos guide the operator through routine tasks
Flexibility to position user interface remotely
Ability to access the interface on a connected network, including via mobile devices

Specifications：

Application method	Direct ApplyTM technology for side panel, pneumatic roller wipe for rear panel
Print technology	Thermal Transfer printing with Intelligent MotionTM Ribbon Drive and Direct Thermal 53mm, 76mm and 107mm printhead versions
Print resolution	300dpi / 200dpi emulation mode
Print speed	1.6 – 19.7inches/sec (40 – 500mm/sec )
Ribbon specification	Width: 2.2” (55mm), 3.0” (76mm) and 6.0” (160mm) standard Capacity: Up to 830m, including automatic ribbon save; 500m with 160mm unit only
Label specification	Label Width 1.6” to 4.5” (40mm to 115mm); dependent on printhead version Label Length 2.0” to 11.8” (50mm to 300mm)
Bar codes supported	EAN 8, EAN 13, UPC-A, UPC-E, Code 39, GS1-128, Code 128, ITF, RSS (including 2D composite codes); others available upon request
Applicable certifications	CE, TüV

Our Core Advantages:

20 Years Experience

Over 20 years of experience in industrial coding and marking.

We have provided professional solutions for customers in different applications all over the world.

Support Customization

Customized logo and welcome page are available on most of our machines. We can provide exclusive design for VIP distributors.

Free Sample Printing

We provide free sample marking for customers all over the world. Customers can check the printing quality before placing an order.

Strict quality Control

Each machine is strictly inspected before delivery. We provide at least a one-year warranty for all of our machines.

Excellent Service Team

Quick and highly efficient response from our professional service team.

Overseas training and installation are available.

Fast Delivery

We can fulfill most orders within 7 days. Safe packing and quick delivery allow distributors to accelerate market launch.

Overseas After-sales Engineers

Our overseas after-sales team consists of veteran senior engineers with More than 20 years of hands-on experience.

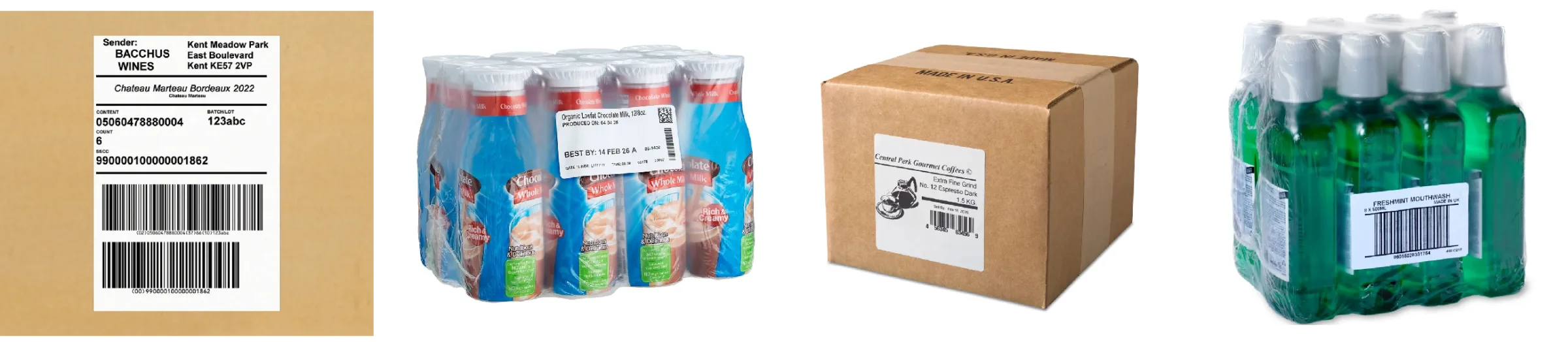

Typical Applications

Videojet 9560 Corner Wrap Print & Apply Labeler details

Application and Selection Guidance for Videojet 9560

For print-and-apply labeling projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
