Product Description
Description：
Specifications：
| System includes |
Controller/input device; printhead; universal power supply;
mounting bracketry and a bottle of porous ink
|
|
| Print heights |
Standard print height: 1.0 inch (25mm)
Optional heights: 0.75 inch (20mm), 1.25 inches (32mm), 1.9 inches (48mm)
|
|
| Character fonts |
7 × 5 dot matrix matrix, 16 × 10 dot matrix matrix
|
|
| Conveyor line speed |
20fpm (6.1mpm) to 200fpm (61.0mpm)
(Line speeds above 35mpm may exhibit a degradation in print quality)
|
|
| Message length |
Up to 40 characters of 16 dot font or two 80 character rows of 7 dot font
|
|
| Message storage capacity |
Up to 40 messages
|
|
| Operating temperature range | 40°F to 120°F (4°C to 49°C) | |
| Electrical |
System uses a universal switching power supply
100/240VAC at 50/60Hz
|
|
|
Print sensor
|
Internal sensors included; external sensor is optional
|
|
|
Ink system
|
Internally regulated ink system; factory set, no adjustment necessary
|
|
|
Shipping weight
|
11.45lbs. (5.19kg)
|
|
|
Mounting bracketry
|
15.0 and 9.0 inch (38.9 and 22.8cm) tubing with 1.0 inch (2.54cm)
|
|
|
Optional bracketry for special installations
|
Long Reach Bracket Kit available for special mounting situations
|
|
|
Product Certification
|
CE, FCC
|
|
MOQ：：1 sets
Advantages and Service Commitments
1.20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
2.Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
3.Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
4.Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
5.Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
6. Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications

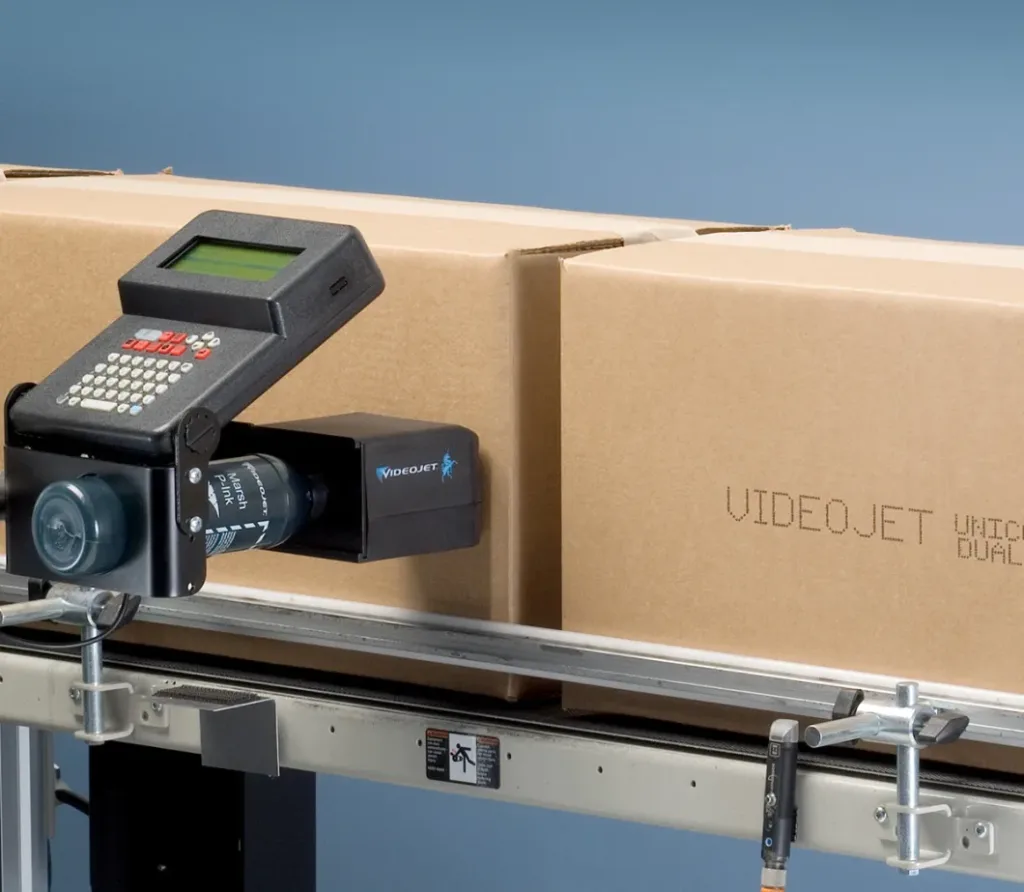

Application and Selection Guidance for Videojet Marsh
For large-character industrial printing projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
