Product Description
Description：

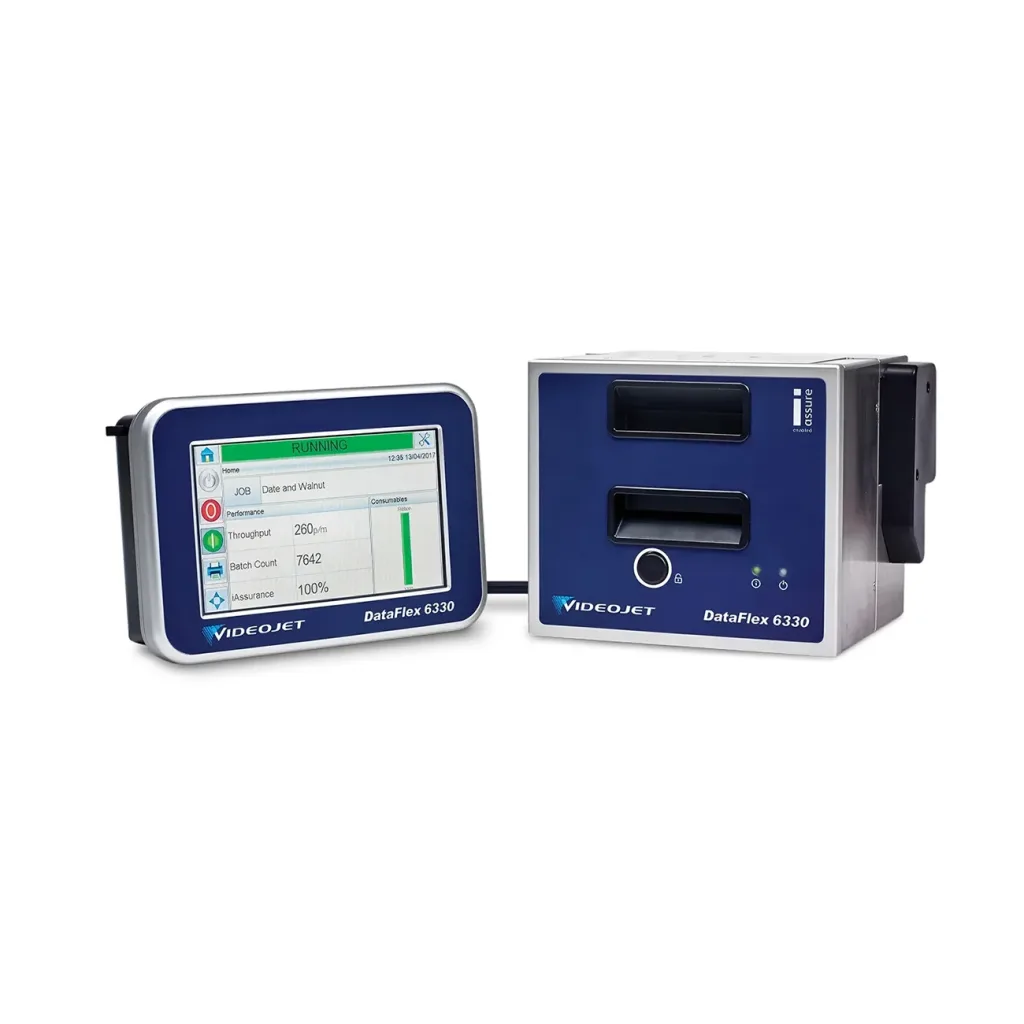

VJ TTO 6330 DataFlex Thermal Transfer Printers
productive operation.
Offering print speeds of up to 750mm/s and throughputs up to 250 ppm , the 6330 is available in a 53mm printhead and a 32mm printhead for smaller printing areas.
Uptime advantage
Reduce costs and downtime, maximize printhead life and gain consistent print quality thanks to airless Videojet Intelligent Motion technology
Up to 1,200m ribbon capacity and a variety of ribbon economy modes help maximize the time between ribbon changeovers
Code Assurance
Videojet iAssure technology, a built-in code quality checker, helps reduce waste and rework with no additional hardware, installation or training
Videojet CLARiTY software helps ensure the right code is consistently printed on the right product
Easy usability
Simple operator interface
Designed to withstand tough production line environments
Minimal wear parts are easy to change out, improving production line uptime
Built-in productivity
Using default settings and no factory air gauge, you can maintain consistent code quality and avoid conventional air and energy settings that operators might over-adjust
Quickly discover code legibility issues that indicate the potential need for printer maintenance
Industry-leading simple cassette change designed for fast ribbon replacement to maximize uptime
25% faster throughput than previous Videojet TTO models.
Specifications：
|
Printing model |
Videojet 6330 |
|
Printhead |
32 or 53mm, 300dpi (12dot/mm) |
|
Printer Mode |
Intermittent and Continuous Motion |
|
Network management software |
CLARiNETTM |
|
Print area |
32mm intermittent printing mode: 1.3″ (32mm) wide x 3.0″ (75mm) long 32mm continuous printing mode: 1.3″ (32mm) wide x 7.9″(200mm) long 53mm intermittent printing mode: 2.1″ (53mm) wide x 3.0″ (75mm) long 53mm continuous printing mode: 2.1″ (53mm) widex 7.9″ (200mm) long |
|
Remote coder configuration software |
CLARiTYTM Configuration Manager “Off-line” set up and parameter storage available as standard |
|
Minimum print speed1 |
Intermittent mode: 1.6 in./sec (40mm/sec) full print quality; 0.4 in./sec (10mm/sec) draft mode print quality Continuous mode: 1.6 in./sec (40mm/sec) full print quality; 0.04 in./sec (1mm/sec) draft mode print quality |
|
Web browser mode |
Control Videojet DataFlex® 6330 units remotely through the host packaging machine interface |
|
Maximum print speed1 |
29.5 in./sec (750mm/sec) |
|
External communications |
RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows® drivers, ZPL and SATO |
|
Maximum throughput1 |
Up to 250 prints per minute |
|
External inputs/outputs |
3 PNP inputs 2 relay outputs and 2 PNP +24V outputs |
|
Printing capabilities |
Full downloadable font support using TrueType® fonts (including multiple languages and Unicode support); fixed, variable and flexible shift code formats; auto best before date calculations and concession auto incrementing decrementing text, counters and bar codes; multiple graphic formats supported (up to scalable text and text blocks |
|
Power supply |
100-240VAC |
|
Operating temperature |
0-40°C (32-104°F)2 |
|
Bar codes |
EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes), DataMatrix, QR; others available |
|
Operator interface |
TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password |
|
Ribbon range |
Full assortment of wax/resin and resin ribbons |
|
Maximum ribbon length |
Lengths up to 1,200 meters available, dependent on ribbon composition and color |
|
Ribbon widths |
53mm: 0.8″ (20mm) min,2.2″ (55mm) max 32mm: 0.8″ (20mm) min,1.3″ (33mm) max |
|
Nominal gap between successive prints |
0.02″ (0.5mm) |
|
Ribbon saving features |
Radial, interleaved, intermittent stripes |
|
Image design software |
Videojet CLARiSOFTTM, CLARiSUITE® or VideojetConnectTM Design Template Management software |
Advantages and Service Commitments
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer，More than 20 years of Veteran Senior Engineer.
Typical Applications
Application and Selection Guidance for VJ6330
For thermal-transfer overprinting projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
