Product Description
Description：

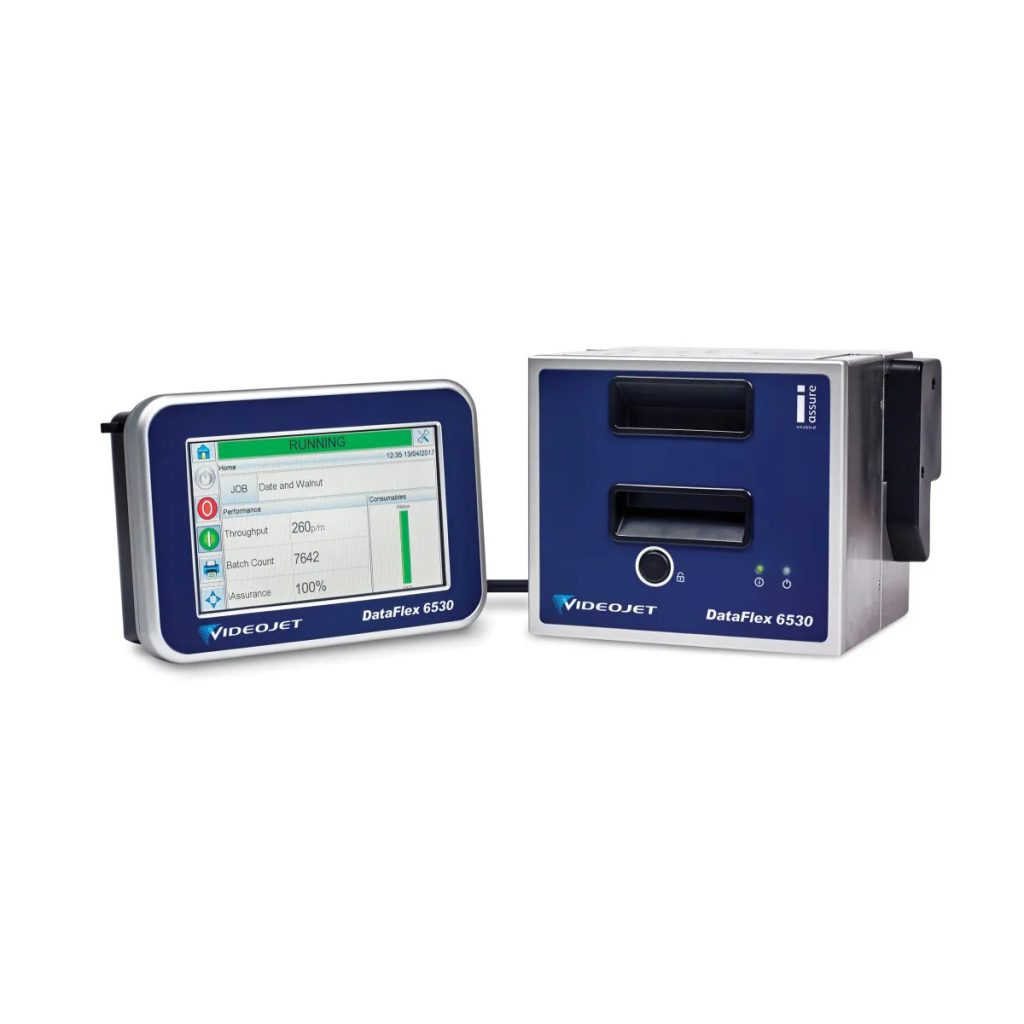

The DataFlex 6530 is a high-speed Thermal Transfer Overprinter that can help improve uptime and provide a more productive operation by helping to reduce time spent on quality checks, waste, and rework. It is also available in two widths, 53mm with iAssure technology, and an industry first airless 107mm, to meet your specific application needs.
Engineered for applications such as vertical form fill and seal, the 6530 offers print speeds of up to 1000mm/s and through puts up to 700 ppm.
And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and troubleshoot potential issues in ways that other printers can’t.
Simple usability
- Simple change ribbon cassette, with pushbutton lock mechanism, allows for fast and easy ribbon replacement
- Intuitive tablet-like 5″ touchscreencontroller with CLARiTYTM interfaceused in other Videojet technologies
Fits your unique production needs
- Airless operation removes the need for plant air
- Offers high-quality codes up to speeds of 150 packs / minute
-
Single design printhead for intermittent or continuous printing
-
Compact design easily integrates into most production lines
Built-in productivity
- Precise ribbon control with bidirectional stepper motors minimizes gaps between codes and reduces ribbon wastage
- 700m ribbon length requires fewer ribbon changes versus hot stamp or other competitive TTO systems
- Simple ribbon path that ensures fast change overs and a more efficient operation
Code Assurance
- WYSIWYG print preview allows operators to confirm the correct code is selected
- Built-in Code Assurance software helps to reduce operator-induced errors, decreasing unnecessary product waste and rework
- Real-time clock stamp avoids date errors
- Benefit from simple code creation with VideojetConnect Design or CLARiSOFT software
Specifications：
|
Printing model |
Videojet 6530 |
|
Printhead size |
53mm and 107mm |
|
Printer Mode |
Intermittent and Continuous Motion |
|
Print Gap |
Consistent 0.020″ (0.5mm) |
|
Ribbon Widths |
6530 (53mm): 0.8” (20mm), 6530 (107mm): 2.2” (55mm), |
|
Ribbon Lengths |
Up to 1200m |
|
Ribbon grade |
7 grades |
|
Bar Code Printing |
EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request |
|
Operator Interface |
TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support |
|
Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface) |
Up to four Videojet DataFlex® 6530 printers controlled via a single CLARiTY™ control unit |
|
Standard Communication |
RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows™ drivers ZPL and SATO emulations |
|
Web Browser Capability |
Yes |
|
Maximum Print Area |
6530(53mm): 2.1” (53mm) wide x 11.8” (300mm) long 6530 (107mm): 4.3” (107mm) wide x 11.8” (300mm) long |
Our Core Advantages:
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer，More than 20 years of Veteran Senior Engineer.
Typical Applications
Application and Selection Guidance for VJ6530
For thermal-transfer overprinting projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
