Product Description
Description：

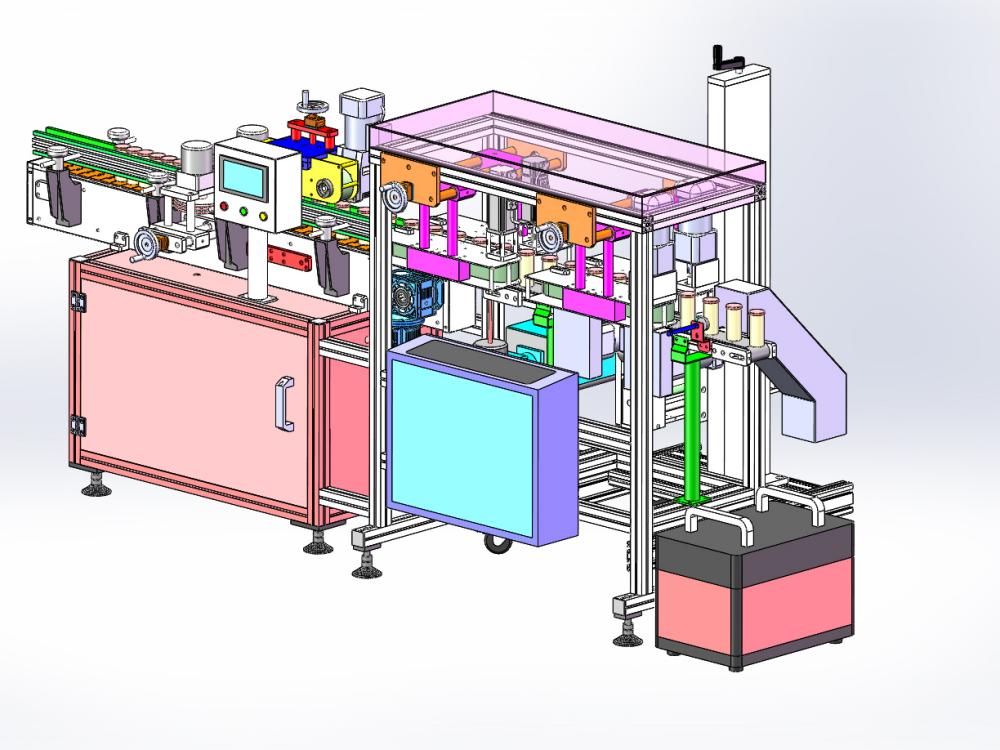

This is an integrated feeding line which we made for a World-renowned pharmaceutical company in Asia.It helped customer complete multiple processes,including feeding,capping,UV laser marking, visual inspection and rejection.The whole line is divided into three sections,and the speed of each sec- tion can be adjusted separately.The maximum capacity is over 200 bottles per minute.The laser marking is achieved from the bottom of the bottle,with a 15 watts laser gun.Customer can see and set all the pa- rameters from HMl easily.The whole line is only 2.7 meter,helping save lot of space for customers.
Our company can design and supply all kinds of special production lines according to cusotmers’re- quirments.We test and make sure they can work perfectly with our coding and marking machines so cus- tomer can run smoothly.
Introduction
With built-in positioning and measurement algorithms,MV-SC3016C vision sensor can detect object’s existence,position,dimension,color,etc.It can be monitored and operated via the SCMVS client.It can output re-sults via RS-232 and Ethernet,and cooperate with other processes via I0.The vision sensor supports multiple result output methods and customized result text output.
Key Features
Adopts embedded hardware platform for high-speed image processing.
Adopts built-in positioning and measurement algorithms to detect object’s exis tence,position,dimension,etc.
Multiple I0 interfaces for input and output signals.
Multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols,including Serial Port,TCP Client,TCP Server,Profinet,Modbus,etc.
Applicable Industry
Consumer electronics,food and medical industry,automobile,etc.
Customer can put around 30 pcs off cartons to the laoding area in on time, then our feeding line willseparate the cartons one by one and transport them to the coding area.The printing will happen when the sensor detect the carton.Customer use a double heads UV inkjet printer to print both side of the carton,with the printing height of around 50mm.After the coding is fin- ished,the cylinder pushes the cartons and stacks them up automatically, thus saving a lot of manpower.
Our Core Advantages:
20 Years Experience
Support Customization
Customized logo and welcome page are available on most of our machines. We can provide exclusive design for VIP distributors.
Free Sample Printing
We provide free sample marking for customers all over the world. Customers can check the printing quality before placing an order.
Strict quality Control
Each machine is strictly inspected before delivery. We provide at least a one-year warranty for all of our machines.
Excellent Service Team
Fast Delivery
Overseas After-sales Engineers
Our overseas after-sales team consists of veteran senior engineers with More than 20 years of hands-on experience.
Application and Selection Guidance for Customized Coding Production Lines and Corollary Equipments
For industrial laser marking projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
