Product Description
Description：
- Fiber laser marking is a technique which uses computer-controlled laser beam to leave permanent mark on the surface of various kinds of object.The working principle of fiber laser marking machine is to use light am-plification to cause chemical effects or burn part of the material to mark letters,symbols,barcodes,and other graphics on an object.

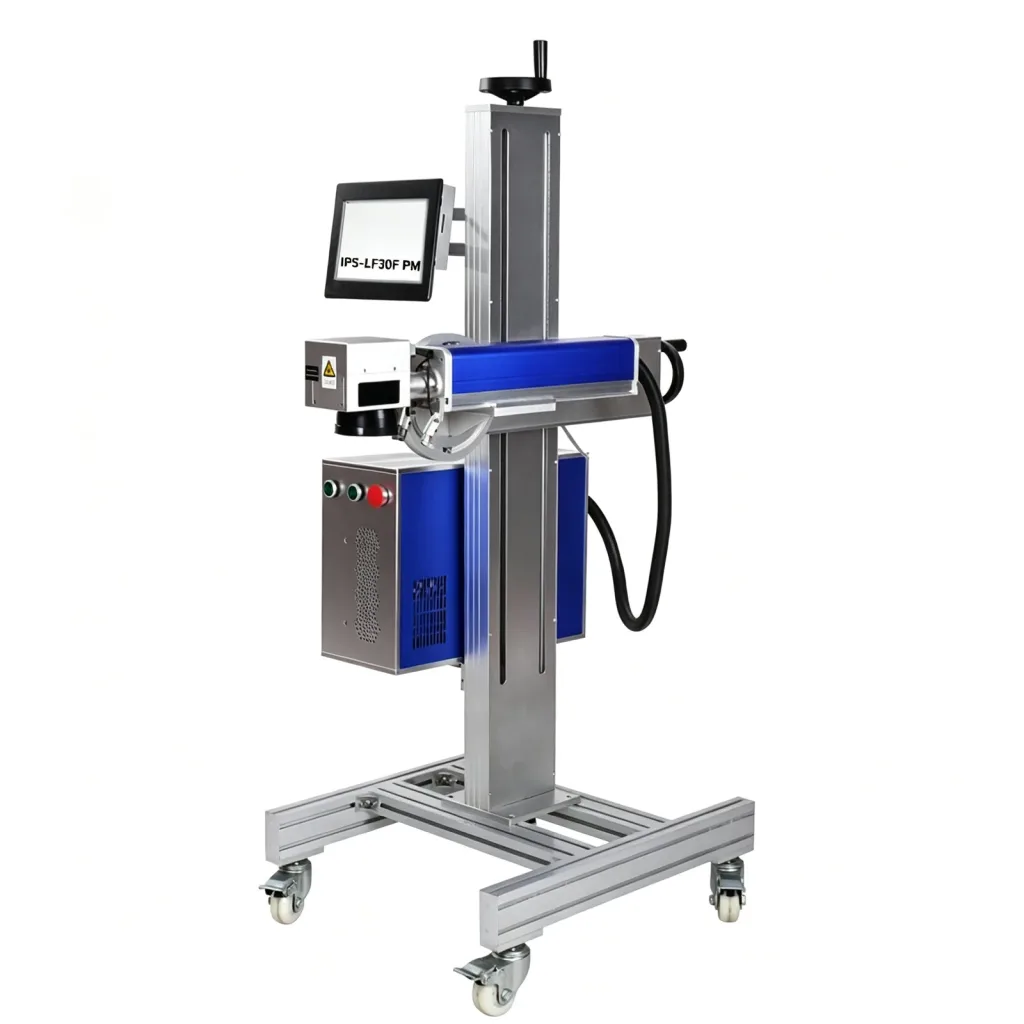

- Fiber laser marking machine is mainly composed fiber laser,laser scanning galvanometer and controller. The fiber laser has the advantages of small size,high quality beam,no maintenance and etc.The output center wavelength of fiber laser is 1064 nm and the life time is around 100,000 hours.Compared with other kinds of laser,fiber laser has a longer life time.
Specifications：
| Model | IPS-LF30 PM | IPS-LF50 PM | IPS-LF100 PM | |||||||||||||||||||||||||||||||||||||||||||
| Laser Power | 30 W | 50 W | 100 W | |||||||||||||||||||||||||||||||||||||||||||
| Laser Wavelength | 1064nm | |||||||||||||||||||||||||||||||||||||||||||||
| Laser Gun Model | Pulse Fiber Laser | |||||||||||||||||||||||||||||||||||||||||||||
| Positioning Model | Red-ight indication | |||||||||||||||||||||||||||||||||||||||||||||
| Linear Speed | 8000mm/s standard,high speed available | |||||||||||||||||||||||||||||||||||||||||||||
| Marking Size | 110*110mm standard,other size optional | |||||||||||||||||||||||||||||||||||||||||||||
| Min Font Height | 0.2 mm | |||||||||||||||||||||||||||||||||||||||||||||
| Min Linewidth | 0.01mm | |||||||||||||||||||||||||||||||||||||||||||||
| Repetition Accuracy | ±0.002 mm | |||||||||||||||||||||||||||||||||||||||||||||
| Marking Depth | ≤5mm(Depend on the material) | |||||||||||||||||||||||||||||||||||||||||||||
| Overall Power | ≤500W | |||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 100-240V/50-60 Hz15A/1P | |||||||||||||||||||||||||||||||||||||||||||||
| Cooling System | Built-in Air Cooling | |||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Android system | |||||||||||||||||||||||||||||||||||||||||||||
| Master Control | 10.1-inch external touch controller | |||||||||||||||||||||||||||||||||||||||||||||
| Language | Arabic,Bengali,English,French,Italian,Japanese,Korean,Persian,Polish, Portuguese,Russian,Spanish,Thai,Turkish,Vietnamese |
|||||||||||||||||||||||||||||||||||||||||||||
| File Format | DXF,PLT,AI,BMP,JPEG,TTF font QR code,DM code,Barcode Numbers,TEXT,Datebase,SN,etc. |
|||||||||||||||||||||||||||||||||||||||||||||
| Weight | Fly model-74kg,Fixed model 120kg,including wood carton | |||||||||||||||||||||||||||||||||||||||||||||
| Packing Size | Fly model-142*42*52 cm,Fixed model-88*85*97cm,including wood carton | |||||||||||||||||||||||||||||||||||||||||||||
| Working Environment | Temperature:10-40℃,Humidity:10%-90%No Condensation | |||||||||||||||||||||||||||||||||||||||||||||
Our Core Advantages:
20 Years Experience
Over 20 years of experience In coding and marking Industrial .
We have provided professional solution for customers in different applications all over the world.
Support Customization
Customized logo and welcome page are available on most of our machine. We can provide exclusive design for VIP distributors
Free Sample Printing
We provide free sample marking for customers all over the world.Customers can check the printing quality before order.
Strict quality Control
Each machine is strictly inspected before delivery in.We provide at least one year warranty for all of our machines.
Excellent Service Team
Quick and high efficient Response from our professional service team.
Oversea training and installation are available.
Fast Delivery
We can handle most orders within 7 days.Safe packing and quick dell very allow distributors to make.
Overseas After-sales Engineer
More than 20 years of Veteran Senior Engineer
Typical Applications
Application and Selection Guidance for IPS-LF
For industrial laser marking projects, confirm the required code content, production-line speed, substrate, print height, number of lines, installation distance, communication interface and consumable requirements against the verified specifications above. Providing sample images and line information helps INKVEO review the application and recommend an appropriate configuration.
